There is a new boss BMW in town!
The 2017 B7 just came online ahead of its first showing in Geneva next month. A round 600HP is the new entre, with the 100-kph sprint promised at a 3.7-seconds. This may be conservative, with ideal conditions likely to see the new LWB, AWD sedan hit the mid 3s to 60-mph. The Vmax at the top end is 193-mph, with pricing in Germany from 148k Euros.

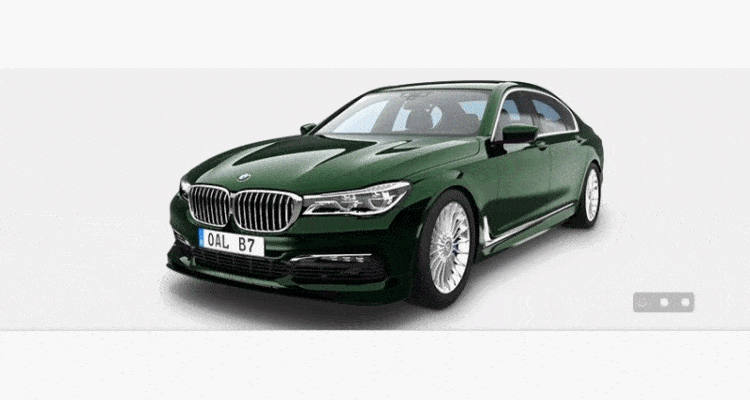

As a nod to Alpinas past, the B7 is offered with an very shouty Deco Kit — with bright ALPINA front letters and a flowing criss-cross of belt and sill line graphics. Silver or gold are the choices, along with the special Alpina Blue and Green paint finishes.
The B7 is headed stateside by summertime.
2017 BMW ALPINA B7 xDrive
Technical Data
BMW ALPINA B7 BITURBO LWB All-wheel drive
Engine
Cylinders | V8 90° |
---|---|
Capacity (cc) | 4395 |
Bore (mm) | 89.0 |
Stroke (mm) | 88.3 |
Compression ratio (:1) | 10.0 |
Max output (kW (hp) / rpm) | 447 (608) / 5750 – 6250 |
Max torque (Nm / 1/min) | 800 / 3000 – 5000 |
Engine management | BOSCH DME 8.8.0 |
Fuel type | 98-octane |
Emissions classification | Euro 6 |
Performance
Acceleration 0-100 km/h (s) | 3.7 |
---|---|
Top speed (km/h) | 310 |
Fuel consumption *
Urban (l/100km) | 14.7 |
---|---|
Extra-urban (l/100km) | 7.9 |
Combined (l/100km) | 10.4 |
CO2 emissions combined (g/km) | 242 |
CO2 efficiency | E |
Transmission
Transmission | 8-Speed Sport-Automatic ZF 8HP70 SWITCH-TRONIC |
---|---|
1st | 5.0 |
2nd | 3.2 |
3rd | 2.14 |
4th | 1.72 |
5th | 1.31 |
6th | 1.00 |
7th | 0.82 |
8th | 0.64 |
Final drive ratio | 2.81 |
Wheels and tyres
Standard wheels and tyres | ALPINA CLASSIC 20″ |
---|---|
Front | 8,5 x 20 255/40 ZR20 |
Rear | 10 x 20 295/35 ZR20 |
Dimensions
Length (mm) | 5250 |
---|---|
Width (mm) | 1902 |
Height, unladen (mm) | 1491 |
Wheelbase (mm) | 3210 |
Track, front (mm) | 1622 |
Track, rear (mm) | 1619 |
Luggage capacity (l) | 515 |
Fuel tank capacity (l) | ca. 78 |
Weight
Unladen (EU) (kg) | 2110 |
---|---|
Max permissible (kg) | 2735 |
Permitted load (kg) | 700 |
Max axle load, front (kg) | 1330 |
Max axle load, rear (kg) | 1455 |
- Unique combination of high-performance drivetrain with 600 bHP and xDrive all-wheel drive system provide a 0-60 mph acceleration time of just 3.6 seconds.
- Most advanced suspension and chassis technology with ALPINA calibration including for the first time Integral Active Steering for ultimate dynamics and comfort.
- Carbon Core body in conjunction with ALPINA specific suspension geometry and MICHELIN® Pilot Super Sport tires lead to high agility, direct handling and precise steering.
- Special ALPINA Sport+ Mode adjusts all vehicle, drivetrain and suspension settings to maximum dynamic performance lowering ride height by 0.8 inches at the touch of a button.
- The ALPINA design and aerodynamic elements underscore the elegant and athletic appearance of the new BMW ALPINA B7 xDrive.
Today, BMW of North America announced the all-new 2017 BMW ALPINA B7 xDrive, the third generation of ALPINA automobiles based on the BMW 7 Series offered in the US. The all-new BMW ALPINA B7 xDrive stands for luxury paired with precision dynamics, effortless performance and comfort at the highest level. The 2017 BMW ALPINA B7 will be available in September 2016 at selected dealerships. Price will be announced closer to market launch.
New generation 4.4 liter V8 engine with twin-turbo charging.
The new 4.4 liter 8-cylinder engine with twin-turbo charging, gasoline direct injection and Valvetronic delivers an impressive output of 600 bHP between 5750 rpm and 6250 rpm, while the maximum torque of 590 lb-ft is available from 3000 rpm. The resulting performance figures are remarkable – the all-new BMW ALPINA B7 xDrive accelerates in just 3.6 seconds from 0 to 60 mph, 0.8 seconds faster than its predecessor while reaching a top speed of up to 193 mph (preliminary figure).The power output of this smooth high-tech engine unfolds with impressive emphasis across the entire rpm range. Excellent throttle response and high torque ensure that even at low engine speeds driver inputs are immediately transformed into forward acceleration.
In addition, to ALPINA’s engineering expertise, a number of significant technical details are responsible for this engine’s power output and performance characteristics – particularly the air intake system, the intercooler and turbocharger configuration and the high-performance cooling system. The twin-turbo charging system comprises two specially developed turbochargers positioned in the V of the 8-cylinder engine. These feature twin-scroll turbochargers with enlarged inlet and outlet diameters. This configuration ensures optimal use of exhaust gas energy even at low engine speeds. The result is a fast power build-up and more torque at low engine speeds for overall exceptional engine response. At 2000 rpm the ALPINA’s V8 twin-turbo engine already produces 494 lb-ft of torque ensuring optimal performance .
The overall aim during the development of the components of the ALPINA air intake system – from the air intake ducts to air filter housings and clean air intake manifold – was to achieve maximum airflow. All components of the high-performance cooling system are designed to remove bottlenecks and maximize effectiveness – special large-volume coolers are interconnected by large diameter hosing for maximum throughput. An indirect intercooler system (air to water) facilitates the implementation of short charge-air intake paths. Combined with additional external water coolers and a transmission oil cooler, the system ensures the thermodynamic stability of the V8 twin-turbo engine at all times, even under the highest loads and ambient air temperatures.
Inside the engine special Mahle pistons and NGK spark plugs are designed to deal with the temperatures and loads associated with 20 psi of boost pressure and a compression ratio of 10.0:1.
The stainless steel ALPINA sports exhaust system is responsible for a reduction in back pressure and weight. Active exhaust valves allow the driver to influence the sound experience by switching the Driving Dynamic Control switch between Comfort and Sport Mode. In typical ALPINA fashion: the two twin tailpipes of the exhaust system are integrated elegantly and aesthetically into the rear apron.
Most advanced suspension and chassis technology with characteristic ALPINA dynamics.
The all-new BMW ALPINA B7 xDrive features cutting-edge suspension technology, offering its driver an exceptional range of driving experiences. The focus to retain the exceptional long-distance cruising comfort of the predecessor while at the same time significantly sharpening the agility, handling and lateral dynamics commensurate to the power output of the all-new BMW ALPINA B7 xDrive.
The 2-axle air suspension system combined with Dynamic Damper Control and Active Comfort Drive with Road Preview guarantees the very highest level of driving comfort at all times while the Active Roll Stabilization minimizes body roll during cornering. The rear wheel steering of the Integral Active Steering system gives the all-new BMW ALPINA B7 xDrive a level of dynamic performance and light-footed handling, typically associated with sports cars. The Driving Dynamics Control switch serves as the central control over which to select the various parameters of all the systems that influence the driving dynamics of the all-new BMW ALPINA B7 xDrive. It also features an Individual Mode, which can be used to combine specific settings independently and in accordance to the driver’s preference.
With the Driving Dynamics Control used to select the appropriate mode, the 2-axle air suspension system is primarily responsible for the exceptional level of ride comfort. It also enables ride height to be changed up or down which in combination with the other suspension systems facilitates the choice of a decidedly comfort or sport orientated chassis set-up. Overall, a maximum ride height adjustment range of 1.6 inches is available. At speeds above 140 mph the ride height of the BMW ALPINA B7 xDrive is lowered by 0.8 inches. This operating state, which can be activated manually to be effective regardless of the speed by selecting the special ALPINA Sport+ Mode, results in a lower center of gravity thereby increasing agility and high-speed stability. The lower ride height results in increased front wheel camber for even more direct turn-in when cornering. When needed, the ride height can also be raised by 0.8 inches up to a speed of 20 mph in order to increase ground clearance.
The settings of the Electronic Damper Control, which influences both rebound and compression, are also selected using the Driving Dynamics Control. A broad range of ALPINA damper set-ups are available ranging from Comfort+ Mode for effortless and relaxed cruising to ALPINA Sport+ Mode for maximum dynamic performance.
For the first time, the all-new BMW ALPINA B7 xDrive features Integral Active Steering, which in conjunction with the high-performance drivetrain and the all-wheel drive system, offers a dynamic driving experience par excellence. The Integral Active Steering combines a variable ratio electric steering system at the front axle with active steering on the rear axle whereby the wheels can turn a maximum of 3 degrees. Specially attuned to the ALPINA suspension and MICHELIN® performance tires, the rear axle steers opposed to the front axle at low speeds for increased agility and dynamic handling, while steering with the front axle at higher speeds for maximum high-speed directional stability.
The all-new BMW ALPINA B7 xDrive is fitted with MICHELIN® Pilot Super Sport tires measuring 255/40 ZR20 at the front and 295/35 ZR20 at the rear, mounted on 8.5 x 20 and 10 x 20 ALPINA CLASSIC wheels. New lightweight 21 inch forged wheels take the traditional 20-spoke ALPINA CLASSIC design into a new minimalistic and technical direction. Forging results in high-density and high-strength aluminum alloy which enables a weight-optimized construction that saves 5.5 lb of unsprung mass per wheel. The MICHELIN® Pilot Super Sport tires are specifically designed to meet the demands of high-performance sports cars. They contribute directly to the precise steering feel and handling of the new BMW ALPINA B7 xDrive while foregoing run-flat technology in the interests of improved ride comfort.
Comprising blue painted 4-piston fixed calipers and 15.5 in x 1.41 in discs on the front axle and floating calipers with 14.5 x 0.94 in discs on the rear axle, the high-performance brake system provides outstanding stopping power and deceleration.
BMW xDrive intelligent all-wheel-drive system with ALPINA calibration
The all-wheel drive system builds upon the technical potential of BMW’s xDrive system and its intelligent and dynamic distribution of drive power which continuously and fully variable distributes torque between the front and rear axle within milliseconds for maximum traction and control. The programming of the torque distribution control, which is interconnected with the Dynamic Stability Control and the engine management system, is performance-oriented and it increases driving agility and dynamics markedly – especially under lateral acceleration – while maintaining balanced and neutral handling. Besides allowing optimum traction under acceleration by eliminating slip induced losses, the system continuously monitors a wide range of sensory inputs – for example steering angle, lateral acceleration, yaw angle and speed – to distribute torque so as to achieve maximum safety in challenging conditions or when encountering sudden changes in road surface friction. The DTC Mode of the Dynamic Stability Control offers a more rear wheel drive bias torque distribution for even more dynamic handling.
Automatic 8-speed Sports Automatic with ALPINA SWITCH-TRONIC.
The BMW ALPINA B7 xDrive utilizes a new generation of the excellent 8-Speed Sport Automatic Transmission with ALPINA SWITCH-TRONIC. Further refined and adapted to the performance characteristics of the high-torque V8 twin-turbo in collaboration with ZF, the transmission offers exceptional driving comfort in all situations.Close gear ratios and a total spread of 7.81:1 improve shift comfort and efficiency. In Automatic Mode the combination of eight gears and high engine torque makes for relaxed, luxurious cruising at low engine rpm even when travelling at higher speeds.
In Sport Mode the shift points have been optimized for improved driving performance and are considerably more dynamic with the option to activate the Launch Control function. For maximum dynamic performance, the driver selects the Manual Mode thereby actuating gear changes manually by using the SWITCH-TRONIC buttons on the back of the steering wheel or via the gear selector switch on the center console. In addition to lightning quick gear shifts (approximately a tenth of a second), this mode also holds the selected gear even when the engine hits the rev limiter.
All components of the transmission such as the torque converter with lock-up clutch, the planetary wheel sets and the inner cooling are designed to specifically cope with the high torque output of the V8 twin-turbo engine. This means that no torque reduction is necessary during upshifts when selecting the Launch Control or when using the sportiest configuration of the Manual Mode. This contributes significantly to the striking longitudinal dynamics of the all-new BMW ALPINA B7 xDrive and allowing it to sprint from 0 – 60 mph in just 3.6 seconds. The transmission features the latest Comfort and Efficient Dynamics functions such as ConnectedShift (use of navigation data for an anticipatory shift strategy based on traffic routing) and Coasting (decoupling of the engine and transmission when coasting).
Athletic and elegant design throughout the B7.

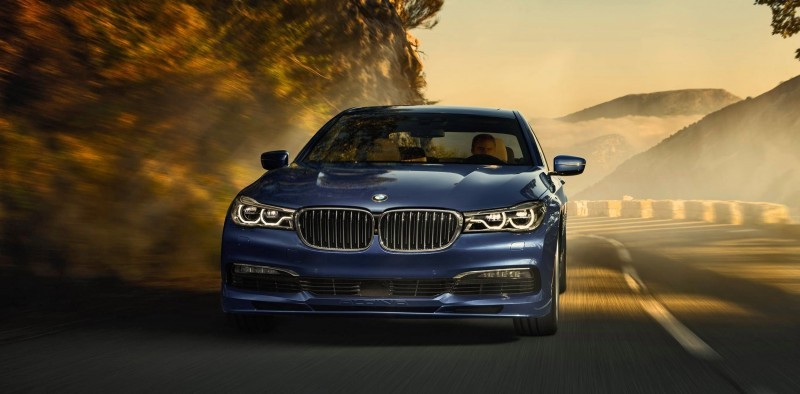

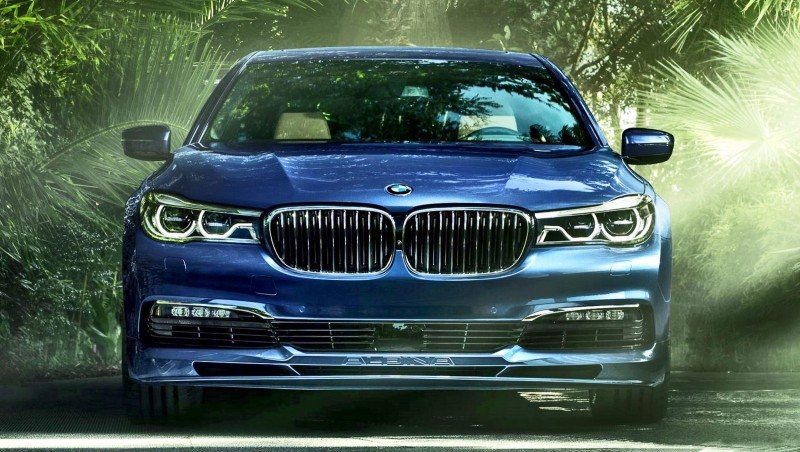

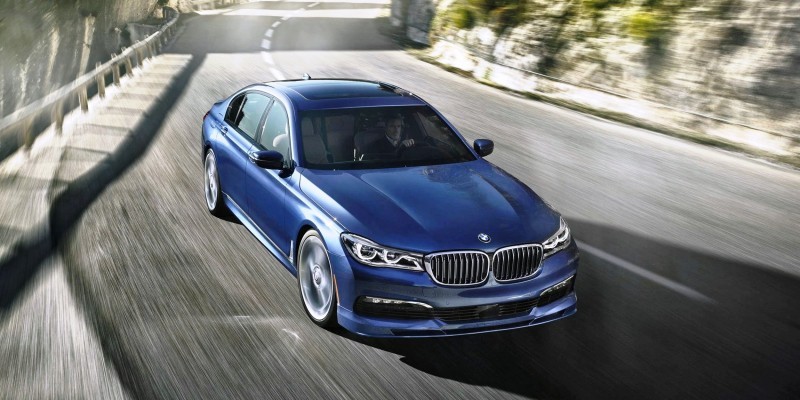

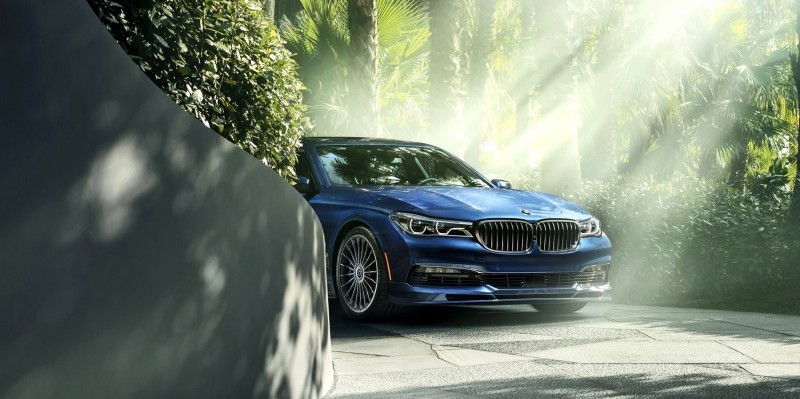

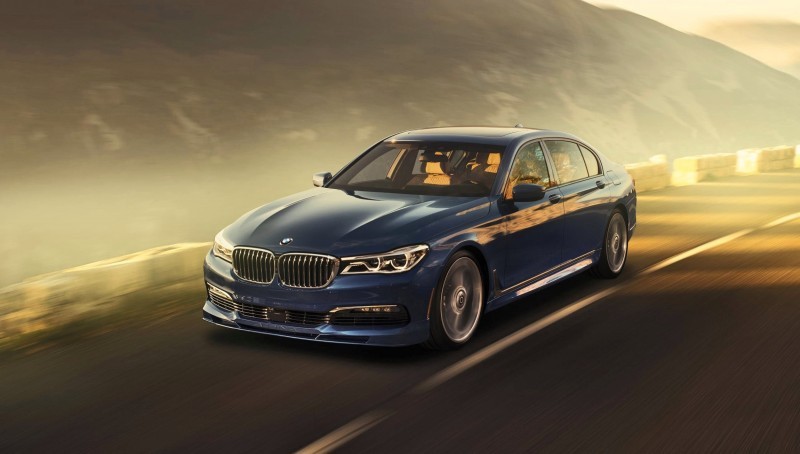

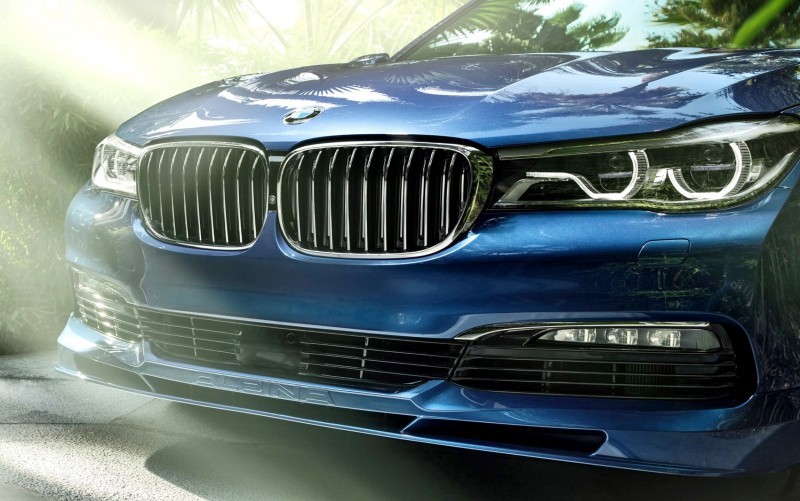

The appearance of the all-new BMW ALPINA B7 xDrive is defined by athletic flair and elegance. The ALPINA design and aerodynamic elements emphasize its performance character, with the front and rear spoiler striking a harmonious balance and highlighting the powerful presence of the 2017 BMW ALPINA B7 xDrive. The design blends form and function – the aerodynamic components reduce lift on the front and rear axles to almost zero for maximum driving stability at all speeds. Openings at the front of the vehicle allow the precise and effective flow of air to the individual components of the high-performance cooling system. The iconic BMW kidney grille is fitted with an integrated air flap control system that adapts to the BMW ALPINA B7 xDrive’s cooling needs: when closed it further reduces the level of aerodynamic drag.

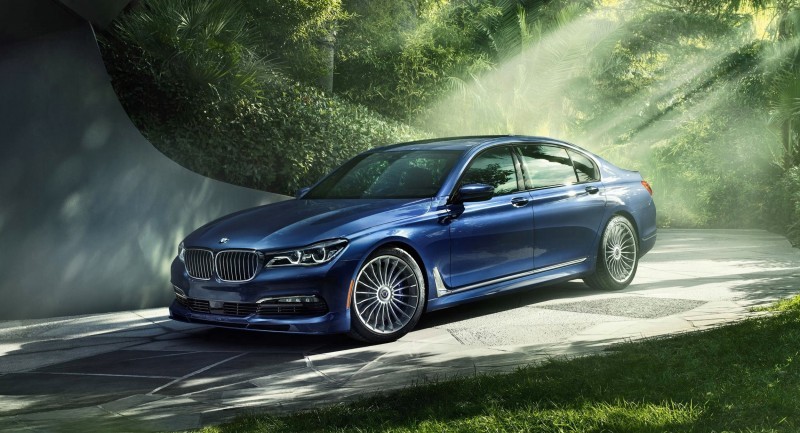

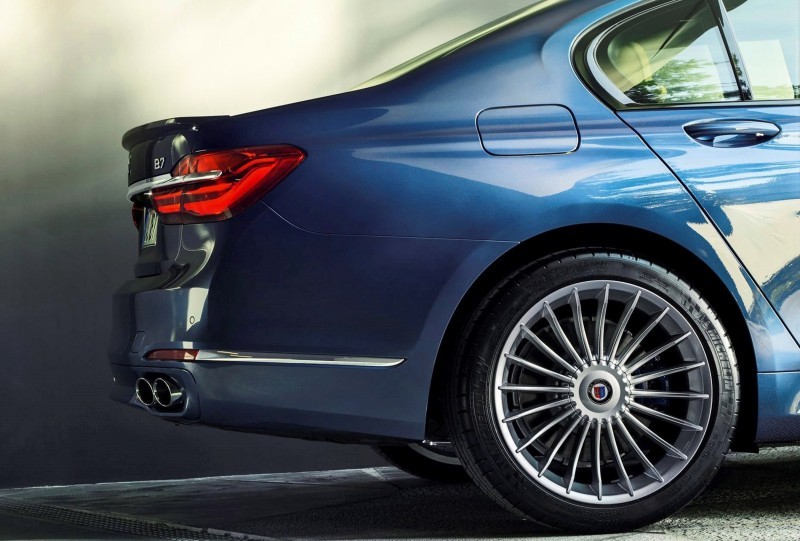

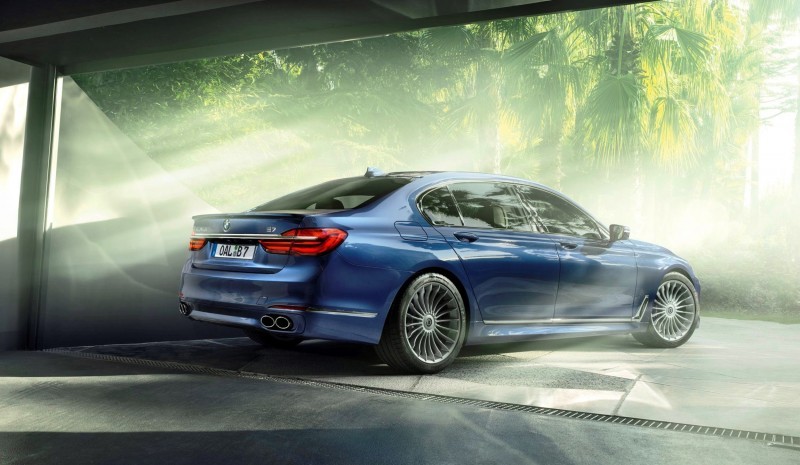

The 20 inch ALPINA CLASSIC wheels with twenty spokes and concealed air valves give the powerful BMW ALPINA B7 xDrive a touch of elegance and lightness. In the interests of weight reduction and a striking technical appearance, the optional 21 inch ALPINA CLASSIC forged wheels with visible wheel bolts do not feature concealed air valves and wheel caps.

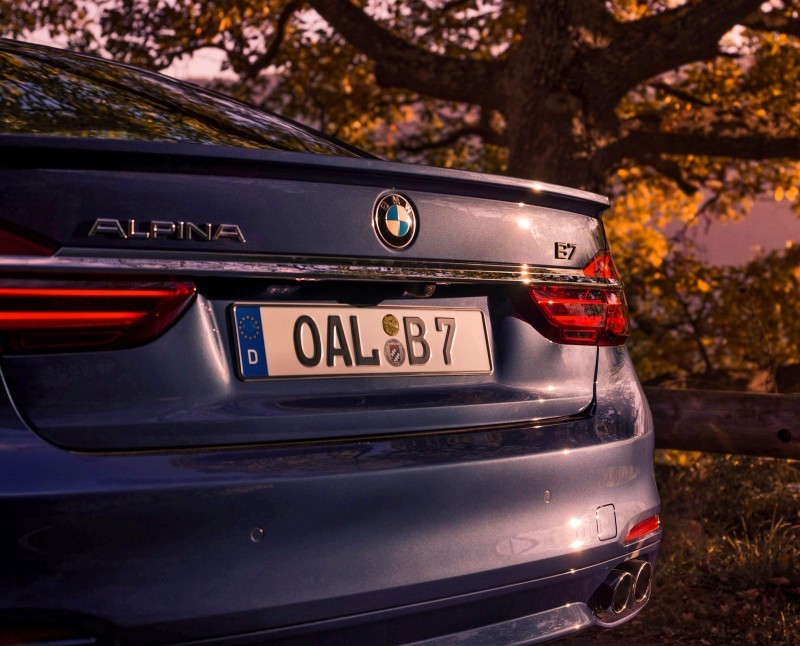

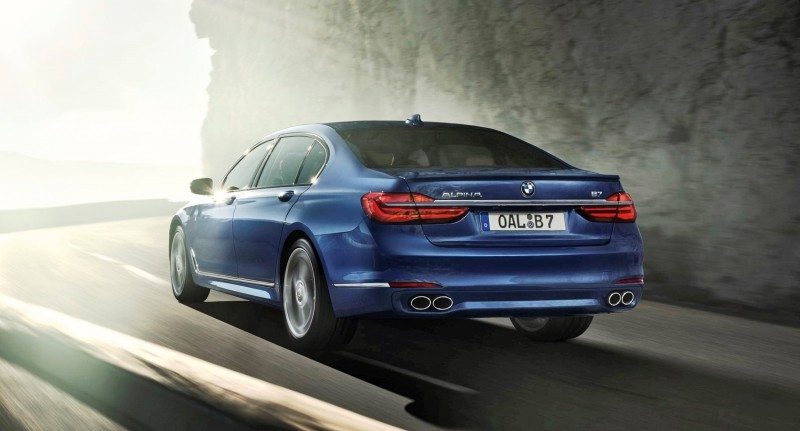

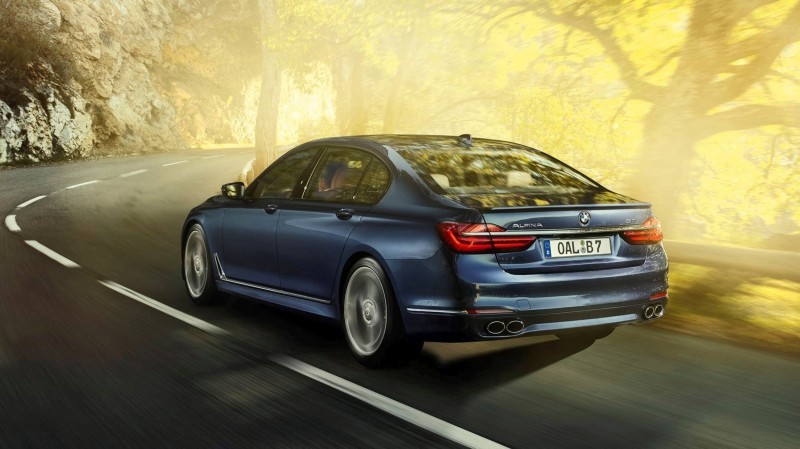

The ALPINA sports exhaust system features two elliptical twin tailpipes that reflect the performance of the all-new BMW ALPINA B7 xDrive and its powerful V8 engine. They are precisely integrated in the rear apron and give the rear a smooth, elegant look.
The exclusive paint finishes in ALPINA Blue metallic and ALPINA Green metallic are a hallmark feature reserved solely for BMW ALPINA automobiles. Other BMW and BMW Individual paint finishes are also available for the 2017 BMW ALPINA B7 xDrive.
Interior and Equipment.

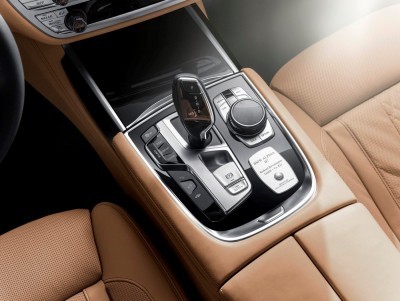

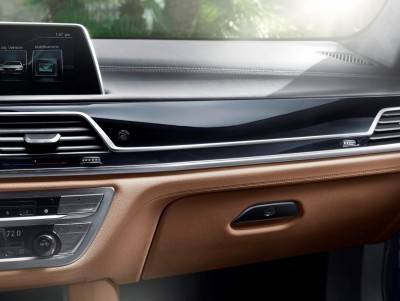

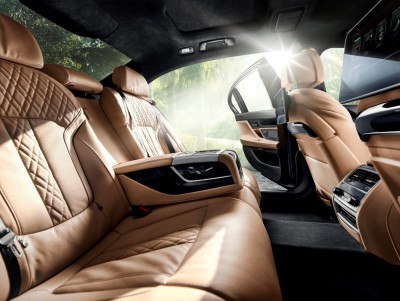

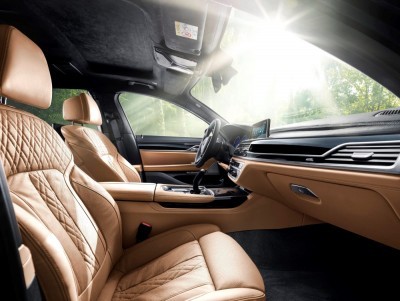

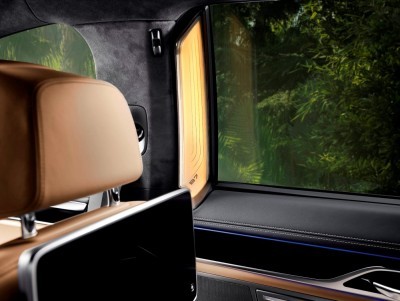

An extensive range of standard equipment ensures maximum well-being and comfort, including high-end Nappa leather, comfort seats, a leather-covered instrument panel, ceramic inserts on selected control elements and soft close doors. Equipment features that enhance effortless driving also come as standard in the new BMW ALPINA B7 xDrive, such as a full-color Head-Up Display, a rear view camera, the latest BMW navigation and communication and infotainment systems.

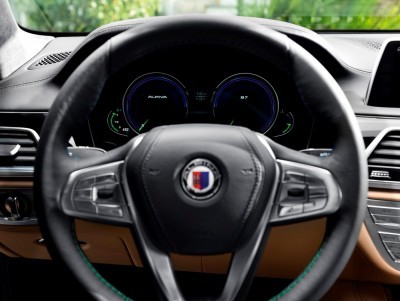

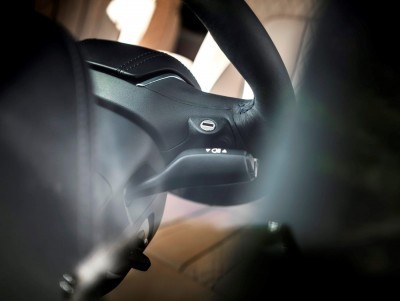

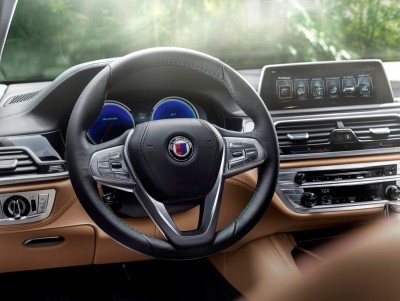

ALPINA details add exclusivity and individual style to the interior. Hand-finished using exceptionally high-quality LAVALINA leather, the sports steering wheel with blue and green stitching is captivating at the very first touch due to its gentle feel. Timeless Piano lacquer or classic Myrtle Luxury Wood – the ALPINA interior trim, door sills with blue illumination, ALPINA B7 model inscriptions and an individual production plaque are further examples of exclusive equipment features in the new BMW ALPINA B7 xDrive.

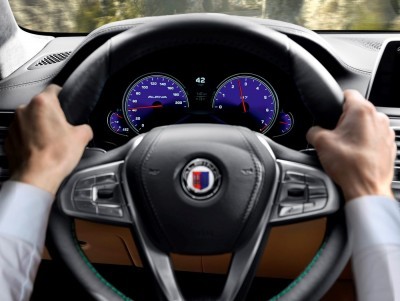

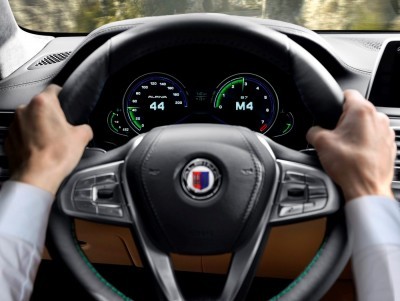

Another exclusive ALPINA design is the full-color digital instrument panel in LED technology. In Comfort Mode it offers a classic look featuring round instruments with blue background and red needles. In Sport Mode the display changes to a more dynamic design with blue and green drag indicators and a focus on primary information, such as the centrally positioned permanent digital speed read-out.
BMW Group In America
BMW of North America, LLC has been present in the United States since 1975. Rolls-Royce Motor Cars NA, LLC began distributing vehicles in 2003. The BMW Group in the United States has grown to include marketing, sales, and financial service organizations for the BMW brand of motor vehicles, including motorcycles, the MINI brand, and the Rolls-Royce brand of Motor Cars; Designworks, a strategic design consultancy based in California; a technology office in Silicon Valley and various other operations throughout the country. BMW Manufacturing Co., LLC in South Carolina is part of BMW Group’s global manufacturing network and is the exclusive manufacturing plant for all X5 and X3 Sports Activity Vehicles and X6 and X4 Sports Activity Coupes. The BMW Group sales organization is represented in the U.S. through networks of 340 BMW passenger car and BMW Sports Activity Vehicle centers, 153 BMW motorcycle retailers, 125 MINI passenger car dealers, and 36 Rolls-Royce Motor Car dealers. BMW (US) Holding Corp., the BMW Group’s sales headquarters for North America, is located in Woodcliff Lake, New Jersey.
ALPINA 1965 – 2016
For 50 years, automobiles have been created in Buchloe on the basis of BMW models. With his development of a Weber dual carburetor system for the BMW 1500, Burkard Bovensiepen laid the foundations for an exceptional enterprise, establishing the company ALPINA Burkard Bovensiepen KG in 1965. The personality of the founder is reflected in the craftsmanship and spirit of the company’s products to this day. As a technology enthusiast he has created vehicles for automobile gourmets in the last 50 years, and in terms of technical refinement his BMW ALPINA models are on a par with the big names of the industry. His motivation was always the pleasure he himself derived from aesthetically appealing objects, his own personal taste and his endeavor to achieve the very best – and these principles remain the driving force behind the entire company and its staff to this day.
The family business ALPINA under the leadership trio of Andreas, Burkard and Florian Bovensiepen is both well-grounded and unique. The company’s model history is remarkable.
# # #
