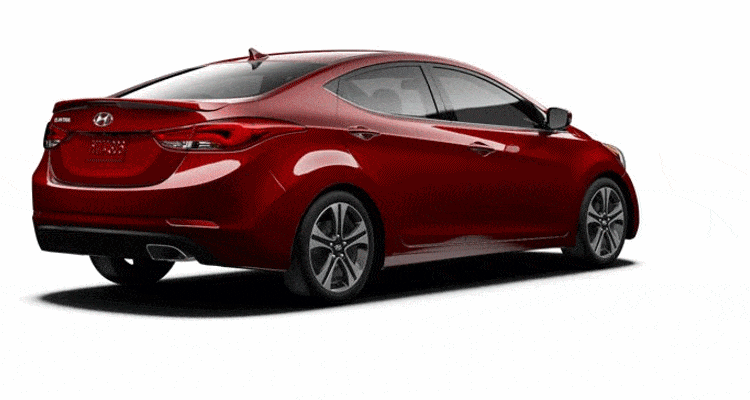

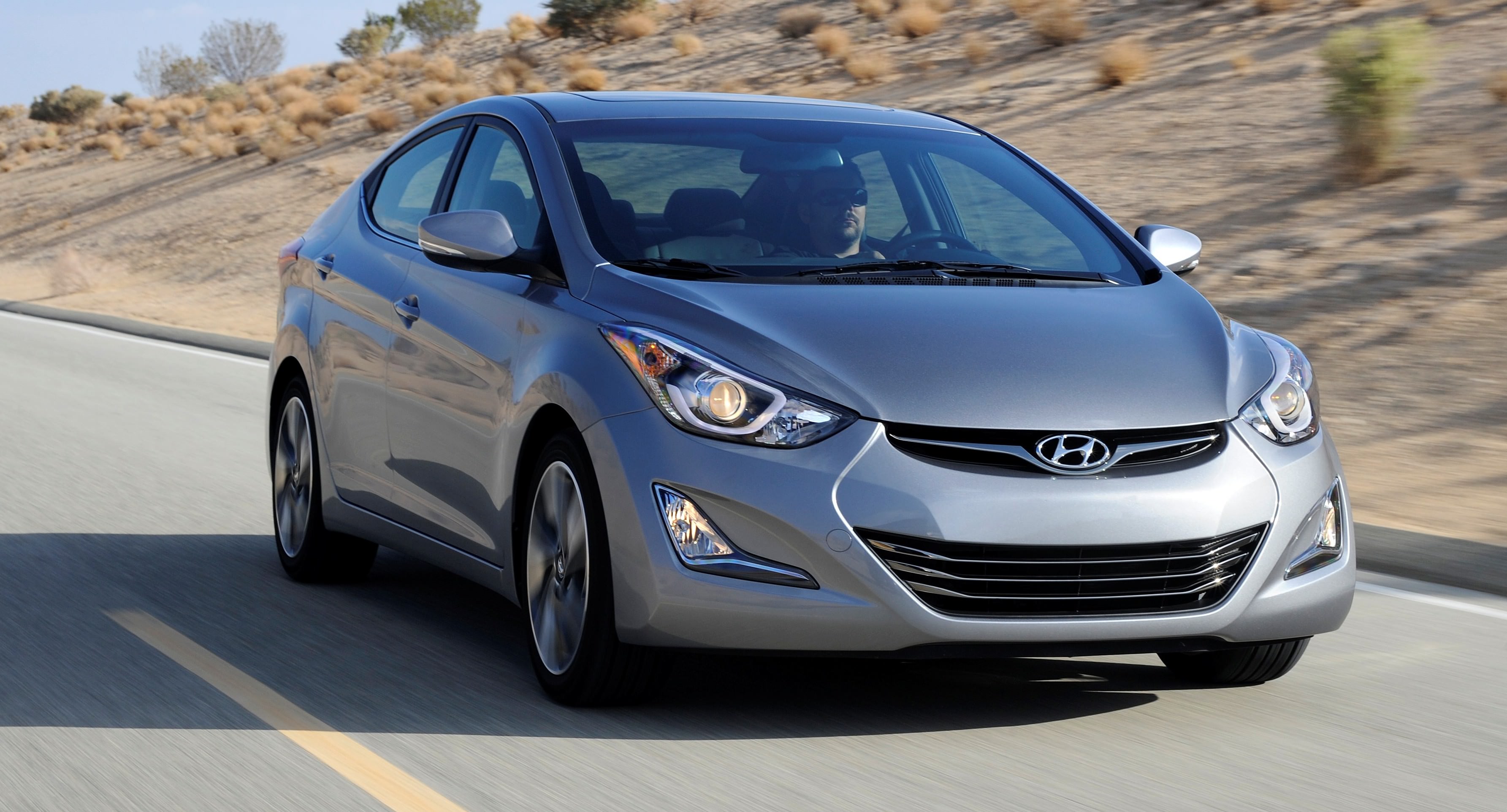

2015 Elantra

1.8L ENGINE

Type

DOHC D-CVVT (Dual Continuously Variable Valve Timing)

Materials

Aluminum block and head

Displacement

1.8L / 1,797 cc

Horsepower

145 @ 6,500 rpm

Torque

130 @ 4,700rpm

Valves per cylinder

4

Bore & stroke

81.0 x 87.2 (mm)

Compression Ratio

10.3:1

2.0L ENGINE

Type

DOHC D-CVVT (Continuously Variable Valve Timing)

Materials

Aluminum block and head

Displacement

2.0L / 1,999 cc

Horsepower

173 @ 6,500 rpm (ULEV)

166 @ 6,500 rpm (PZEV)

Torque

154 lb-ft @ 4,700 rpm (ULEV)

148 lb-ft @ 4,700 rpm (PZEV)

Valves per cylinder

4

Bore & stroke

81.0 x 97.0 (mm)

Compression Ratio

11.5:1

TRANSMISSION

6-speed manual / 6-speed electronic automatic with overdrive lock-up torque converter, gate type, electronic shift lock system, SHIFTRONIC™ manual shift mode (A/T) only

Gear ratios

SE

MT / AT

LIMITED AT

SPORT

MT / AT

First

3.308:1 / 4.400:1

4.400:1

3.308:1 / 4.400:1

Second

1.962:1 / 2.726:1

2.726:1

1.962:1 / 2.726:1

Third

1.257:1 / 1.834:1

1.834:1

1.257:1 / 1.834:1

Fourth

0.976:1 / 1.392:1

1.392:1

0.976:1 / 1.392:1

Fifth

0.778:1 / 1.000:1

1.000:1

0.778:1 / 1.000:1

Sixth

0.633:1 / 0.774:1

0.774:1

0.633:1 / 0.774:1

Reverse

3.583:1 / 3.440:1

3.440:1

3.583:1 / 3.440:1

Final drive

4.333:1 / 2.937:1

2.937:1

4.333:1 / 3.065:1

SUSPENSION

Front

Independent, MacPherson struts with coil springs, hydraulic twin-tube gas-filled shock absorbers, and 22 mm stabilizer bar (23 mm for Sport)

Rear

Torsion axle with gas-filled, hydraulic monotube shock absorbers and coil springs

STEERING

Type

Rack-and-pinion type, power assisted Motor Driven Power Steering (MDPS)

Overall Ratio

14.2:1

Turns, lock to lock

2.8

Turning circle

34.78 ft. (curb to curb)

BRAKES/TIRES/WHEELS

Front

11.0 in. ventilated discs

Rear

10.3 in. solid discs

ABS

4-wheels, 4-channels, 4-sensors with Electronic Brake-force Distribution (EBD)

Brake-Booster

10 in. single

Tires

SE: P195/65R15

SE Optional: P205/55R16

SPORT/LIMITED: P215/45R17

Wheels

SE: 15-in. steel and alloy

SE Optional: 16-in.alloy

SPORT/LIMITED: 17-in. alloy

EXTERIOR DIMENSIONS

Wheelbase

106.3 in.

Overall length

179.1 in.

Overall width

69.9 in.

Overall height

56.3 in.

Tread Width (front/rear) –        15”

61.5 in. / 62.0 in.

                                                16”

1. 0 in. / 61.5 in.

                                                     17”

61.1 in. / 61.6 in. (TBD)

Overhang

34.1/38.8

Minimum Ground Clearance

5.3

Coefficient of Drag

0.28

INTERIOR DIMENSIONS

Head room

Front

40.0 in

Rear

37.1 in.

Leg room

Front

43.6 in.

Rear

33.1 in.

Shoulder room

Front

55.9 in.

Rear

54.8 in.

Hip room

Front

53.5 in.

Rear

52.7 in.

EPA VOLUME

EPA passenger volume

95.6 cubic ft.

EPA cargo (trunk) volume

14.8 cubic ft.

EPA total volume

110.4 cubic ft.

CAPACITIES

Fuel

SE/LIMITED: 12.8 gallons

SPORT: 13.2 gallons

CURB WEIGHT

6-speed manual

SE/LIMITED: 2,773 – 2,899 lbs.

SPORT: 2,890 – 2,915 lbs.

6-speed automatic

SE/LIMITED: 2,818 – 2,943 lbs.

SPORT: 2,923 – 2,959 lbs.

GVRW

6-speed manual

3,836 lbs.

6-speed automatic

3,880 lbs.

EPA FUEL ECONOMY

City

Highway

Combined

6-speed manual SE

27 mpg

37 mpg

31 mpg

6-speed automatic SE

28 mpg

38 mpg

32 mpg

6-speed automatic LIMITED

27 mpg

37 mpg

31 mpg

6-speed manual SPORT

24 mpg

34 mpg

28 mpg

6-speed automatic SPORT

24 mpg

35 mpg

28 mpg

2015 Elantra

n = standard     o = optional     —   = not available

FUNCTIONAL FEATURES

SE

Limited

Sport

Body construction:

High Steel Unibody

n

n

n

Engine:

1.8L DOHC 16-valve Inline 4-cylinder with D-CVVT

n

n

—

2.0L DOHC 16-valve Inline 4-cylinder with D-CVVT

—

—

n

Steering:

Driver Selectable Steering Mode (DSSM)

n

n

—

Sport-tuned

—

—

n

Rack-and-pinion type steering gear

n

n

n

Motor Driven Power Steering (MDPS), power assisted

n

n

n

Suspension:

Front: Independent, MacPherson struts with coil springs, hydraulic twin-tube gas-filled shock absorbers and 22 mm stabilizer bar

n

n

—

Front: Independent, MacPherson struts with coil springs, hydraulic twin-tube gas-filled shock absorbers and 23 mm stabilizer bar

—

—

n

Rear: Torsion axle suspension with coil springs and gas-filled hydraulic monotube shock absorbers

n

n

n

Sport-tuned

—

—

n

Transmission/drive system:

6-speed manual transmission

n

—

n

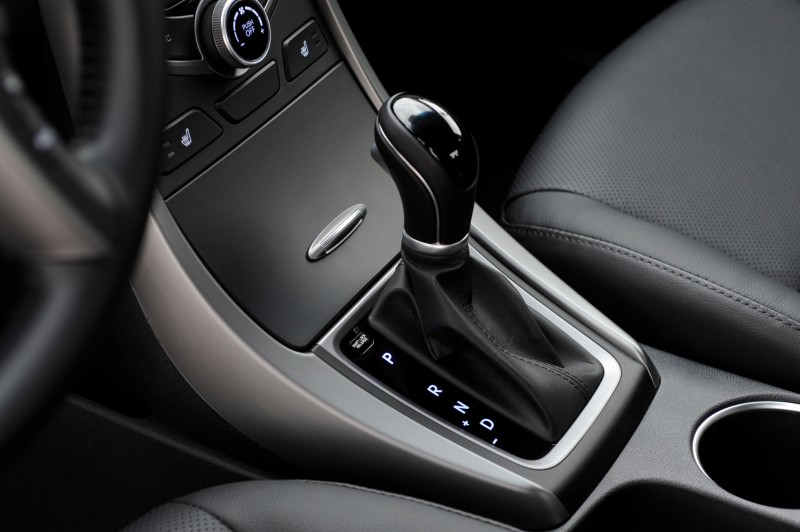

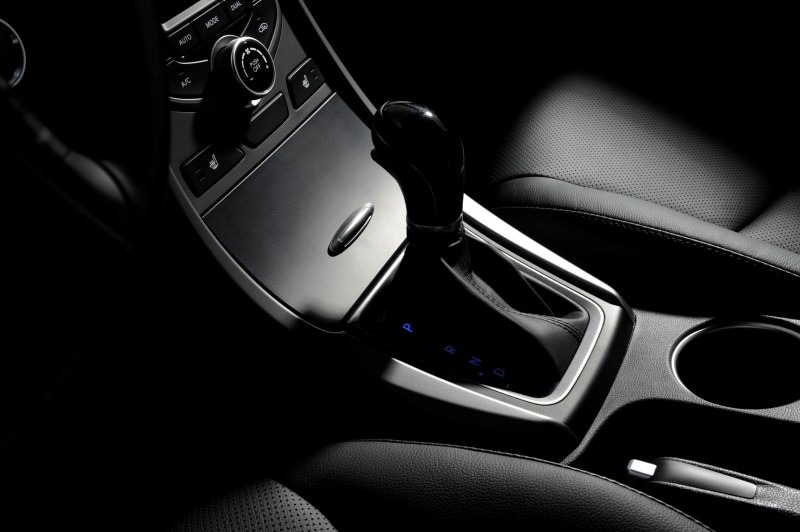

6-speed automatic transmission with overdrive lock-up torque converter, gate type, electronic shift lock system

o

n

o

SHIFTRONIC™ manual shift mode (A/T only)

o

n

n

Front wheel drive

n

n

n

EXTERIOR FEATURES

Center High-Mount Stop Lamp (CHMSL/rear package tray)

n

n

n

Front fog lights

o

n

n

Daytime running lights w/ OFF switch

n

n

n

Automatic headlamp control

o

n

n

Headlights with escort welcome function

n

n

n

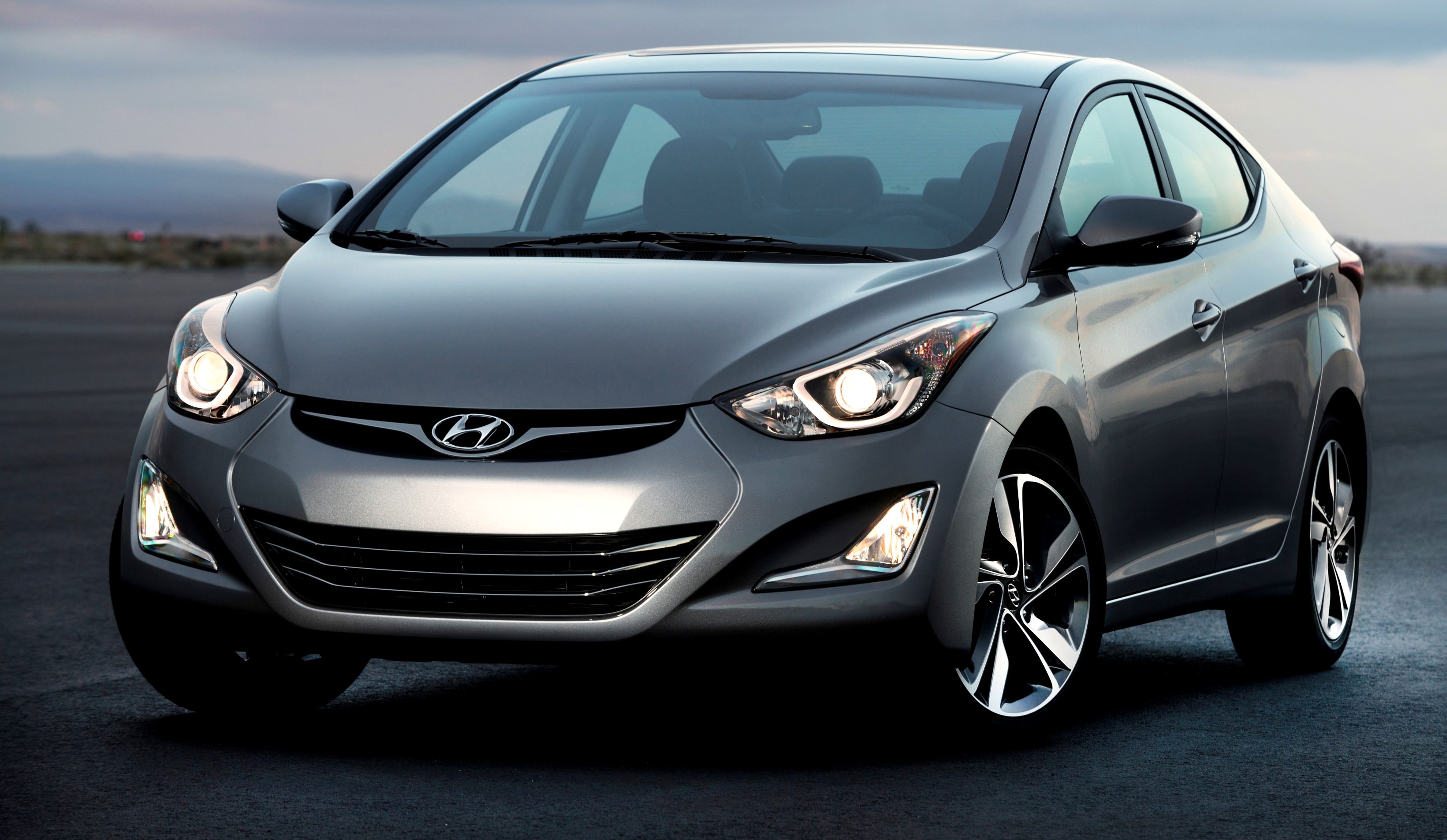

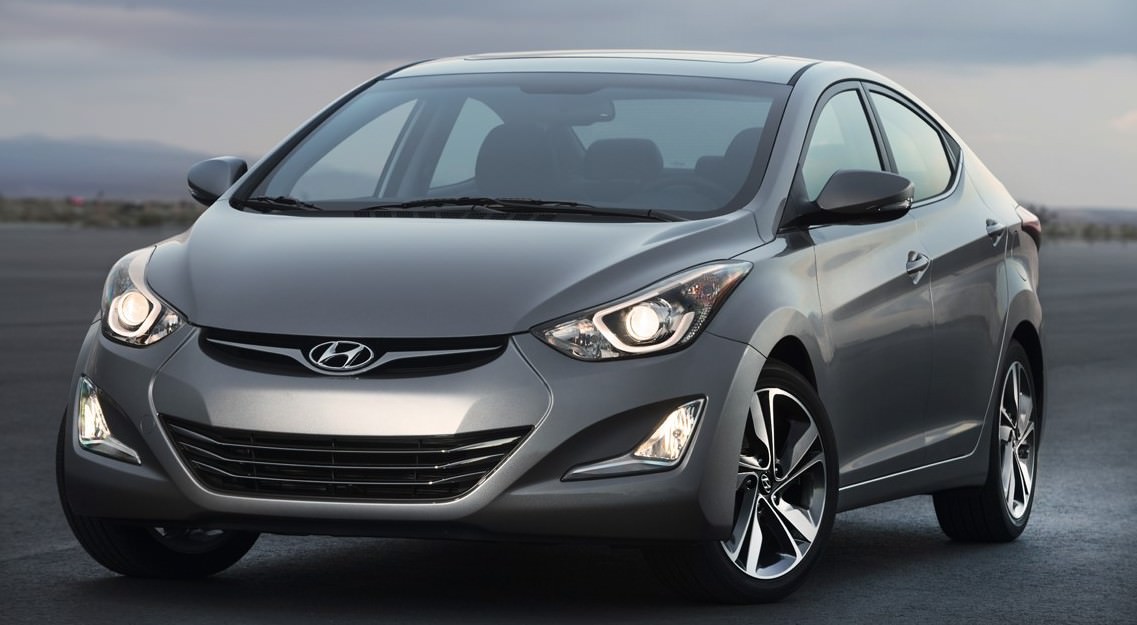

Projector headlights with LED accents

o

n

n

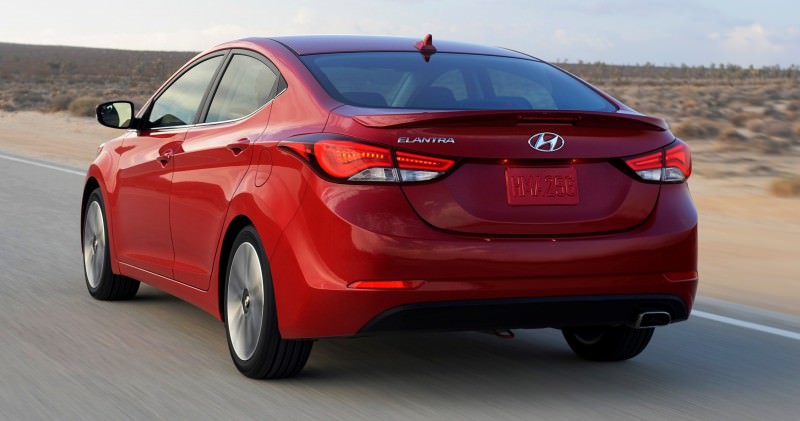

LED rear taillights

—

n

n

Dual heated bodycolor power outside mirrors

n

n

n

Dual heated bodycolor power outside mirrors with turn signal indicator

—

n

n

Bumpers, bodycolor

n

n

n

Grille, chrome accents

n

—

—

Grille, black chrome

—

n

n

Door handles, bodycolor

n

n

n

Windshield shade band

n

n

n

Window belt moldings, chrome

o

n

n

Window belt moldings, black

n

—

—

Tinted glass

n

n

n

Solar glass

n

n

n

Front 2-speed intermittent windshield wipers with mist function

n

n

n

Power tilt-and-slide glass sunroof, safety one-touch

o

o

n

TIRES & WHEELS

15-in. alloy wheel and P195/65R15 tires

n

—

—

16-in. alloy wheel and P205/55R16 tires

o

—

—

17-in. alloy wheel and P215/45R17 tires

—

n

n

INTERIOR FEATURES

Roof trim, high density non-woven

n

n

n

Door trim, cloth inserts

n

—

—

Door trim, leatherette inserts

—

n

n

Door handles, metal paint

n

—

n

Door handles, chrome

—

n

—

Door armrest, integrated

n

n

n

Door map pockets with bottle holders, front and rear

n

n

n

Sunvisors with vanity mirrors with cover

n

n

n

Driver & passenger sunvisor extension

o

n

n

Illuminated vanity mirrors

o

n

n

Shift knob, urethane

n

—

—

Shift knob, leather

o

n

n

Parking brake handle w/ chrome button

n

n

n

Floor covering, needle punch carpeting

n

n

n

Door scuff, step plate

n

n

n

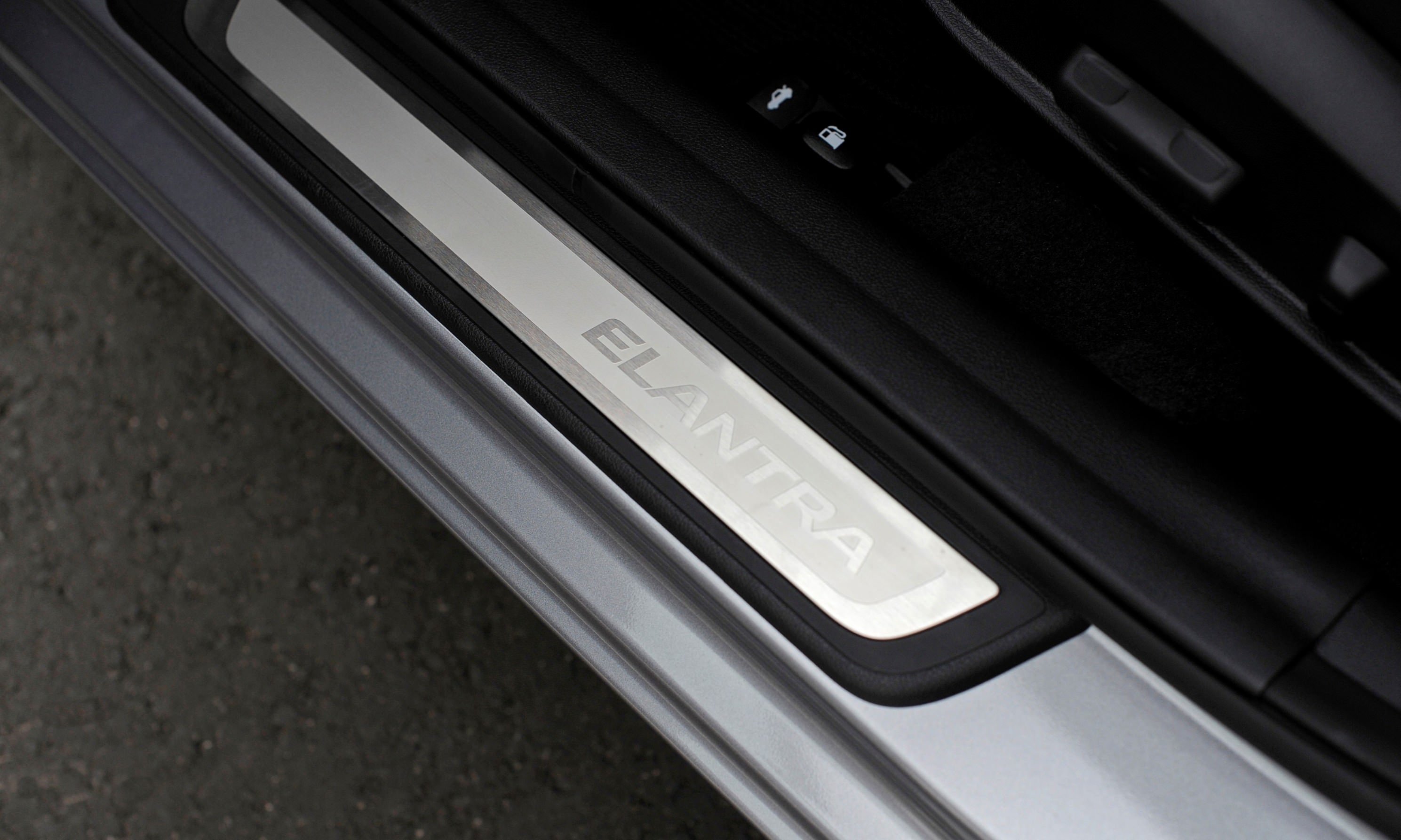

Aluminum entrance sills (front doors)

o

n

n

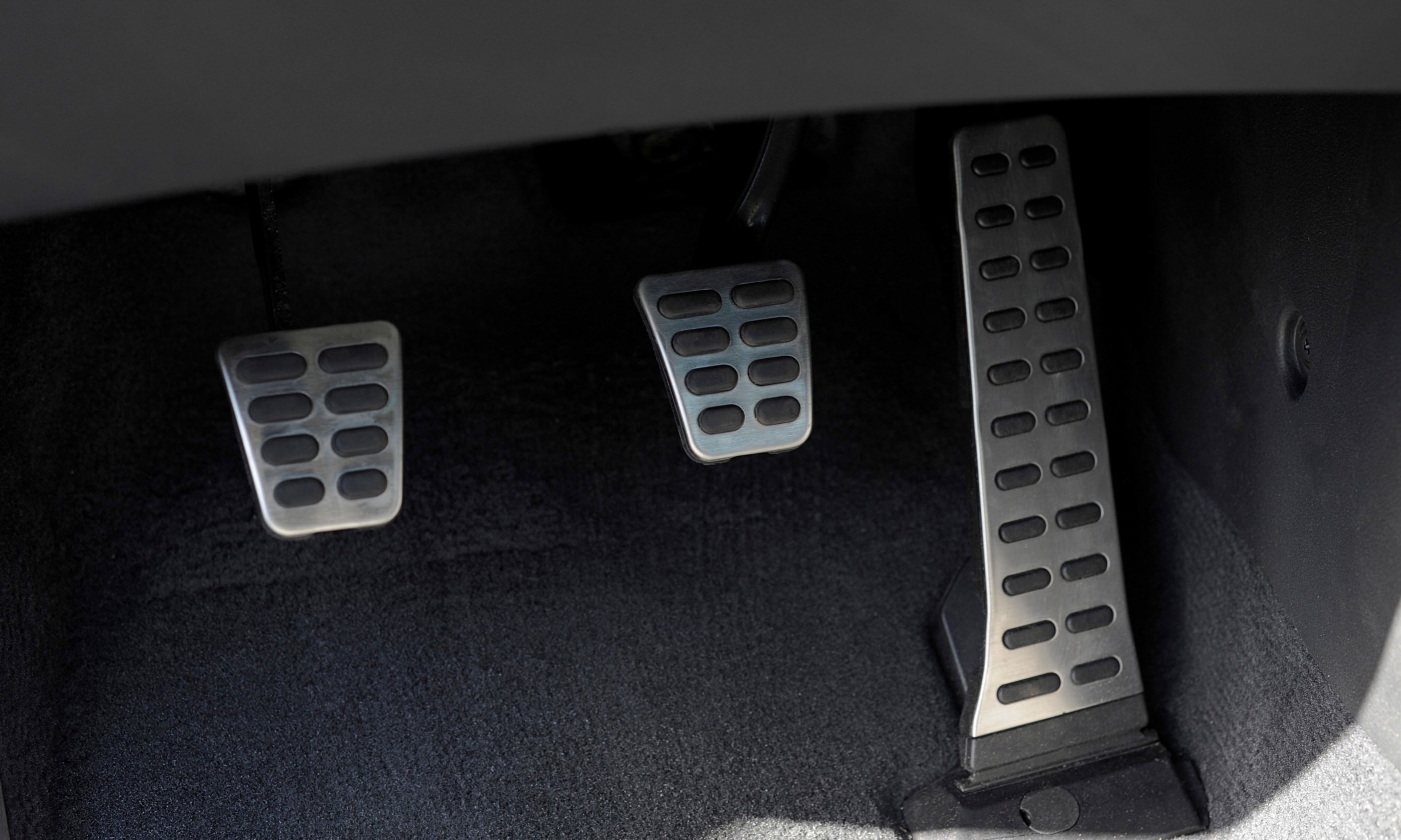

Alloy pedals

—

—

n

Air conditioning

n

n

n

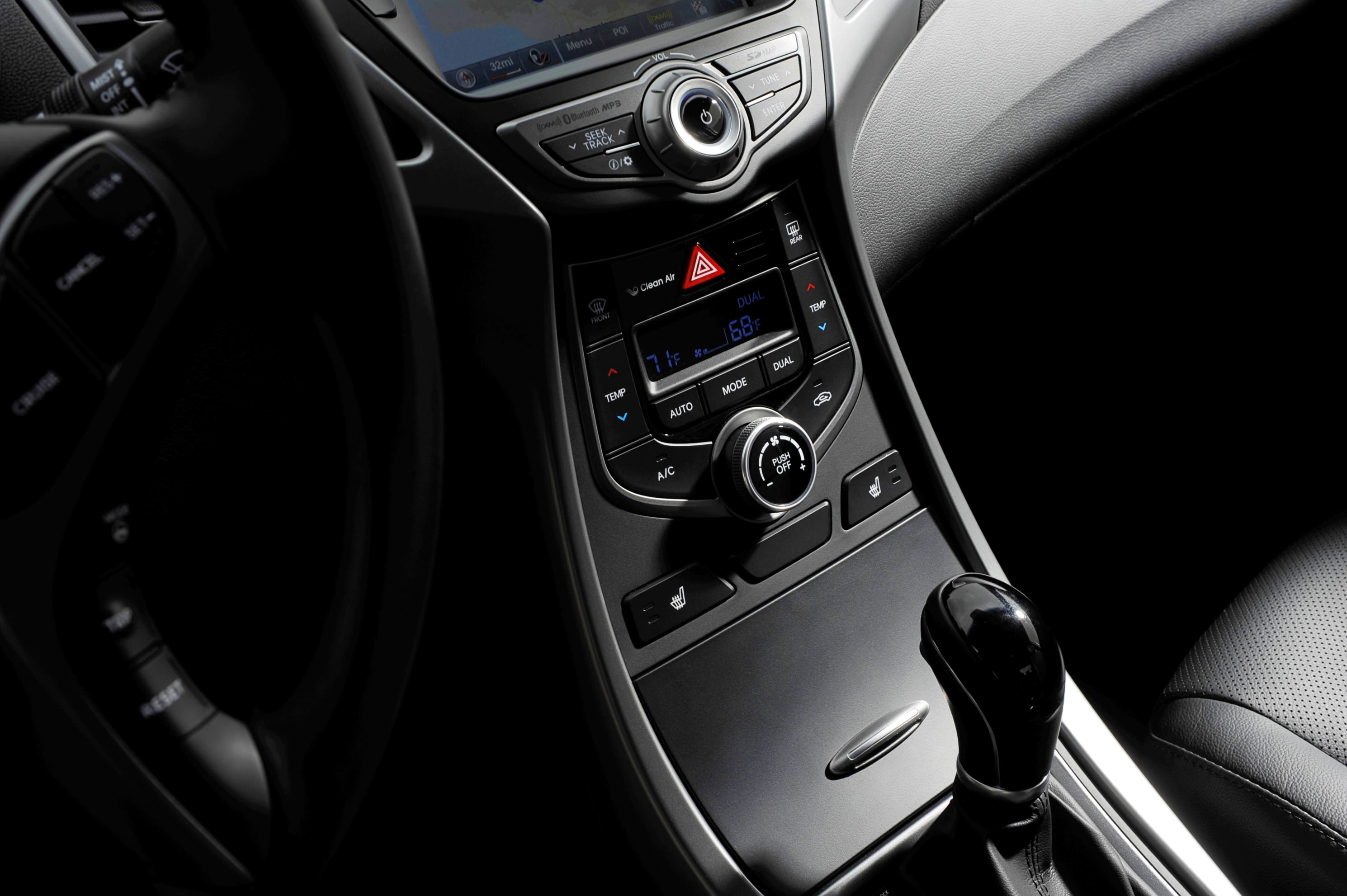

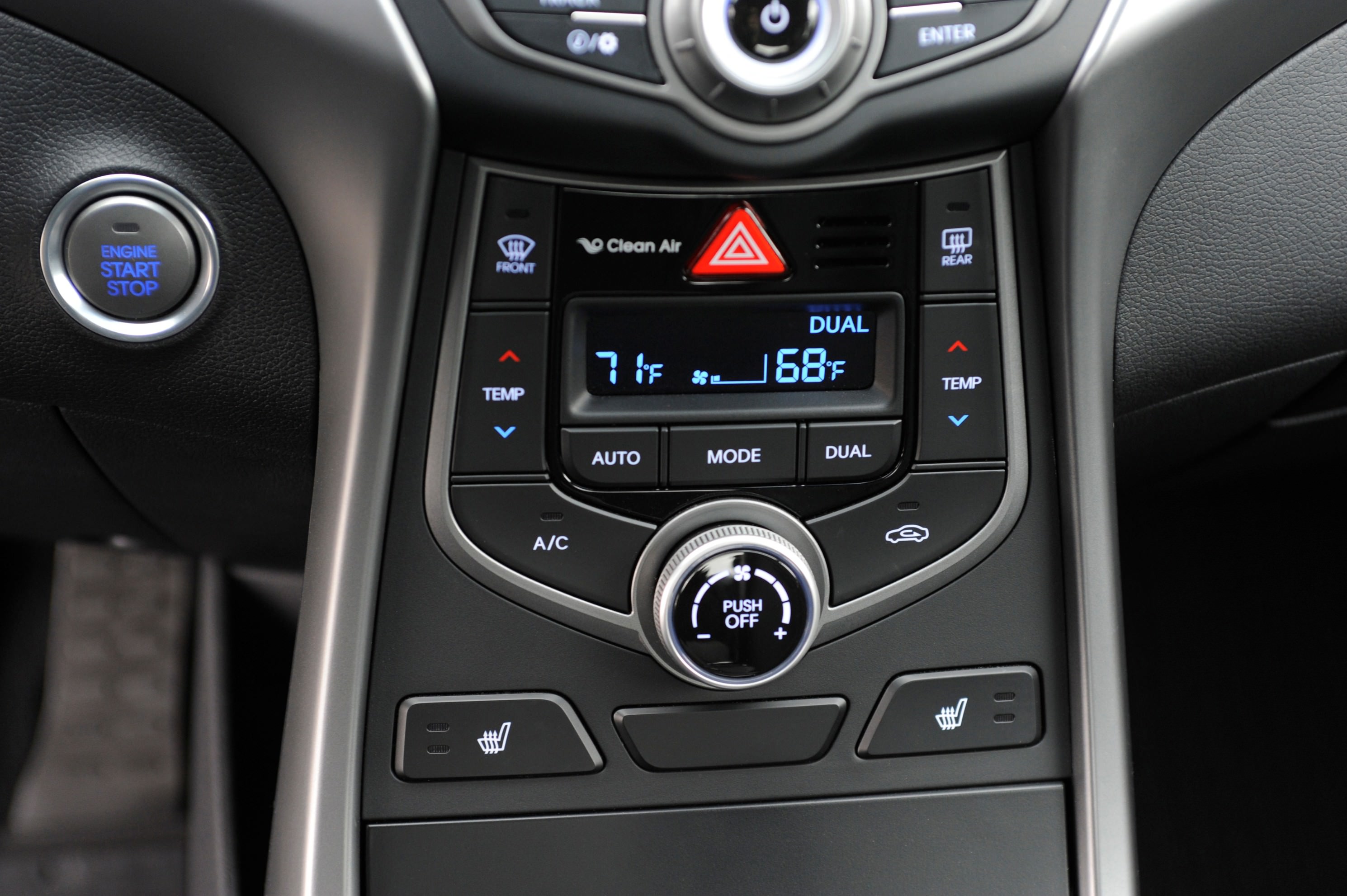

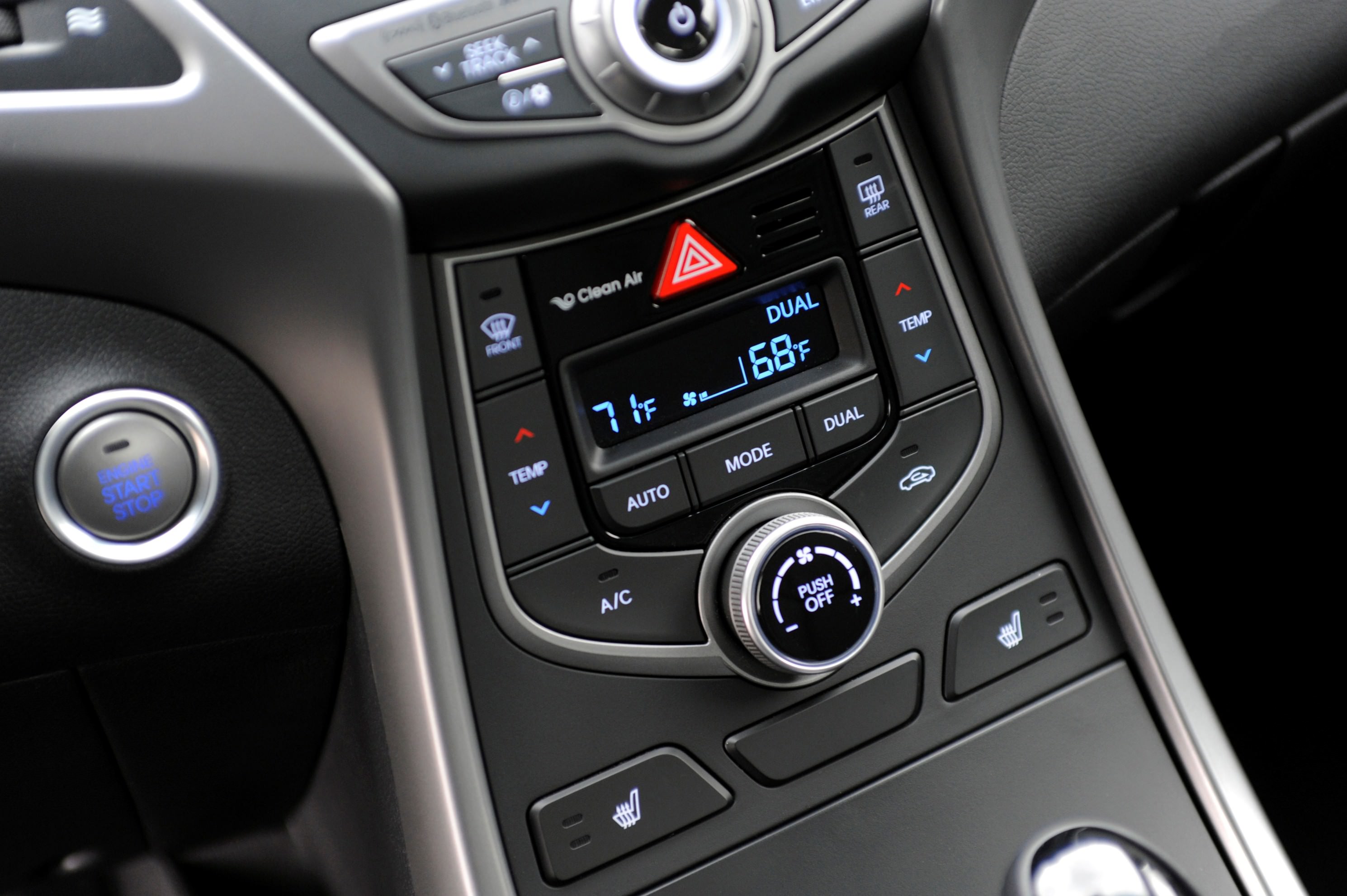

Dual fully automatic temperature control with CleanAir Ionizer and Auto Defog System

—

o

—

Heater with rear seat heater ducts

n

n

n

Cabin air filter

n

n

n

Rear window defroster

n

n

n

Urethane steering wheel

n

—

—

Leather-wrapped steering wheel

o

n

n

Tilt and telescopic steering wheel

n

n

n

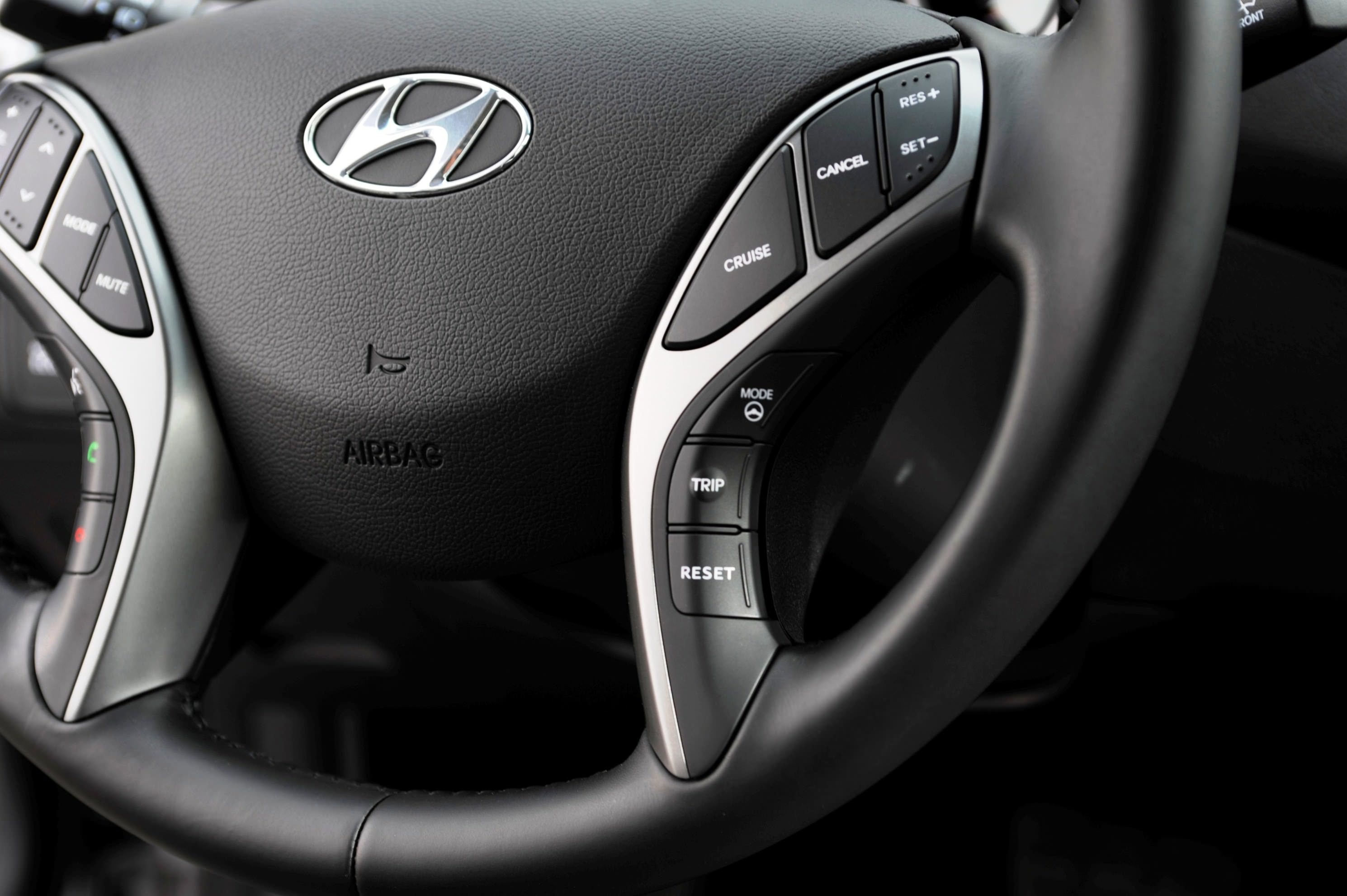

Steering wheel audio controls

o

n

n

Cruise control

n

n

n

Bluetooth® hands-free phone system with voice recognition

o

n

n

INTERIOR ILLUMINATION

Central dome light with delay

n

n

n

Front Maplights with sunglass holder

n

n

n

Cargo area light

n

n

n

Illuminated ignition key cylinder surround

o

n

n

I/P switch illumination (hazard)

n

n

n

CONVENIENCE FEATURES

Cruise control, steering wheel mounted

n

n

n

Trip computer (Distance to Empty, Average Fuel Consumption, Average Vehicle Speed, Elapsed time)

n

n

n

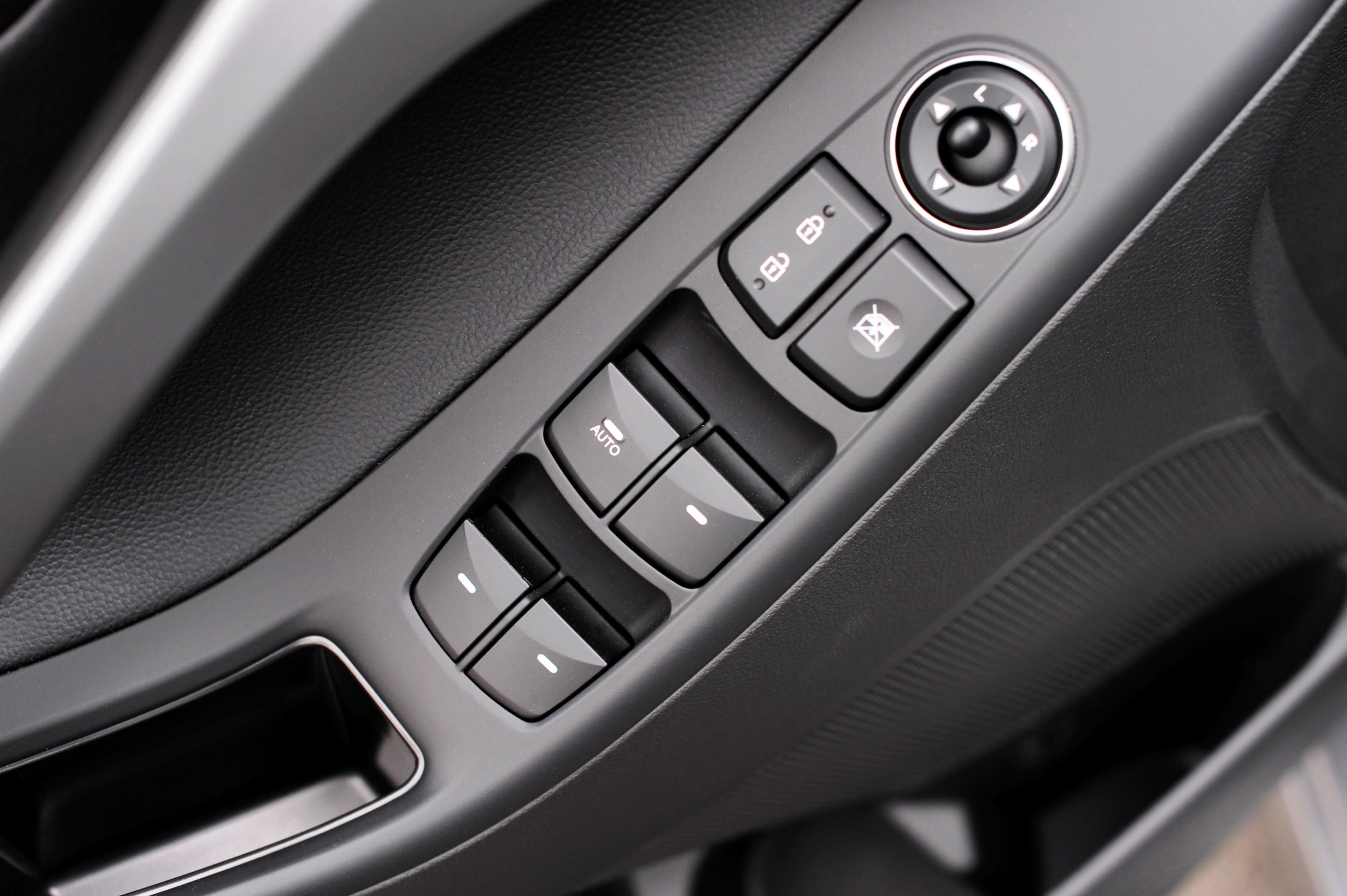

Power windows with driver’s auto-down, all window switches illuminated

n

n

n

Power windows with driver’s auto-up

o

n

n

Power door locks

n

n

n

Remote keyless entry system with alarm, panic and trunk open

n

n

n

Remote fuel filler door, hood, and trunk releases,

n

n

n

Trunk inner cover

n

n

n

Lower console storage box with cover

n

n

n

Center console, fixed armrest storage box

n

—

—

Center console, sliding armrest

o

n

n

Dual cupholders, front center console-mounted

n

n

n

Rear center armrest with cupholders

n

n

n

12-volt outlet (2)

n

n

n

Assist grips (3)

n

n

n

Rear coat hanger (1)

n

n

n

Glove compartment with dampers

n

n

n

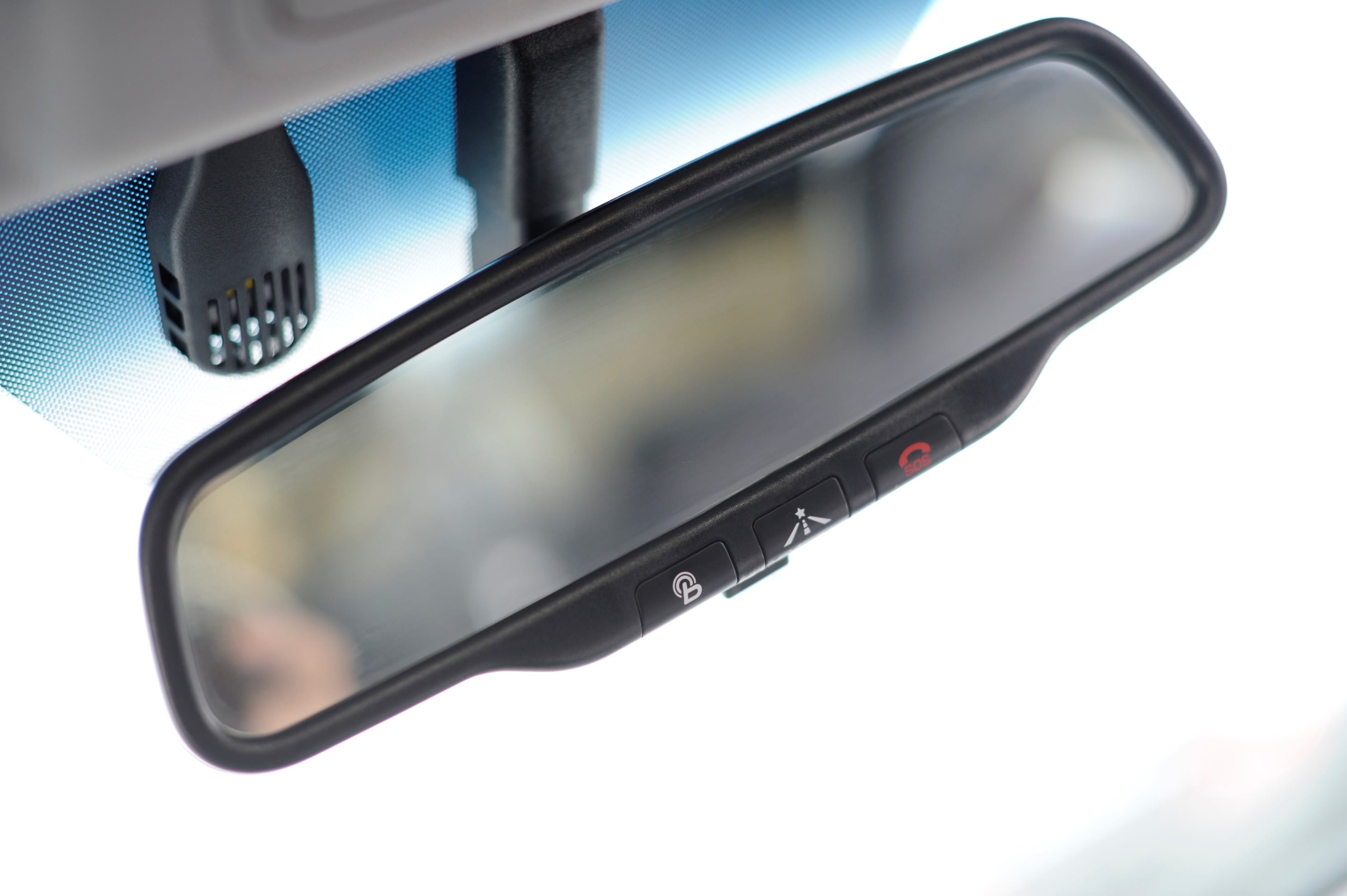

Inside rearview mirror, manual day/night

n

n

n

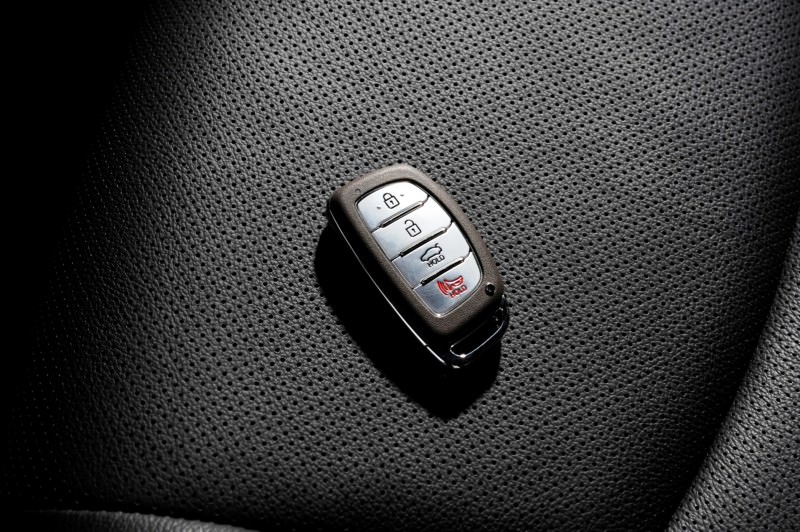

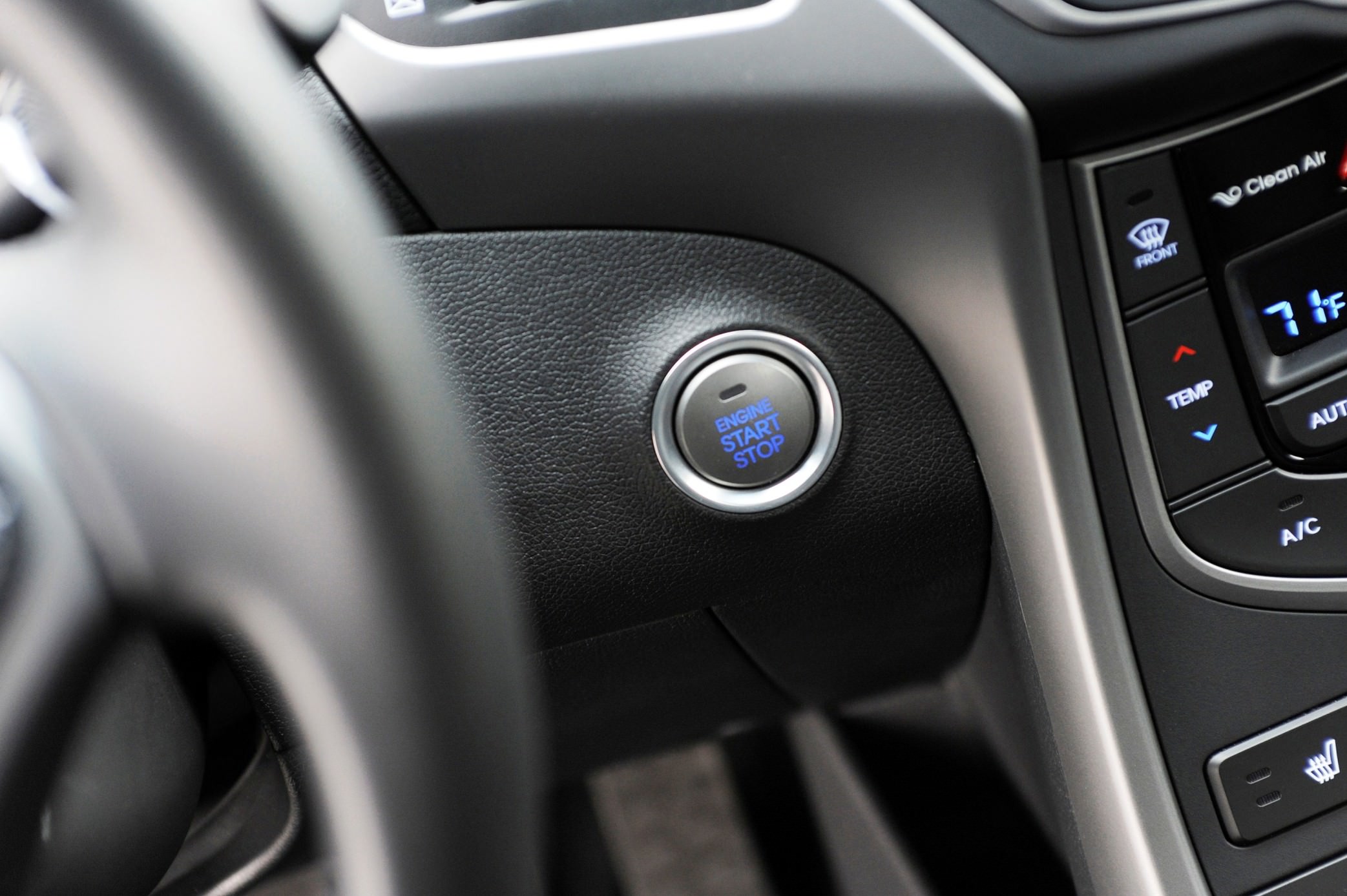

Proximity key entry with electronic push button start

—

o

n

BlueLink telematics

—

n

o

SEATS

Premium cloth seating surfaces

n

—

—

Leather seating surfaces

—

n

n

Heated front seats

—

n

n

Driver seat with 6-way adjustment with height adjustment

n

n

n

Front passenger slide/recline

n

n

n

Front passenger seatback pocket

n

n

n

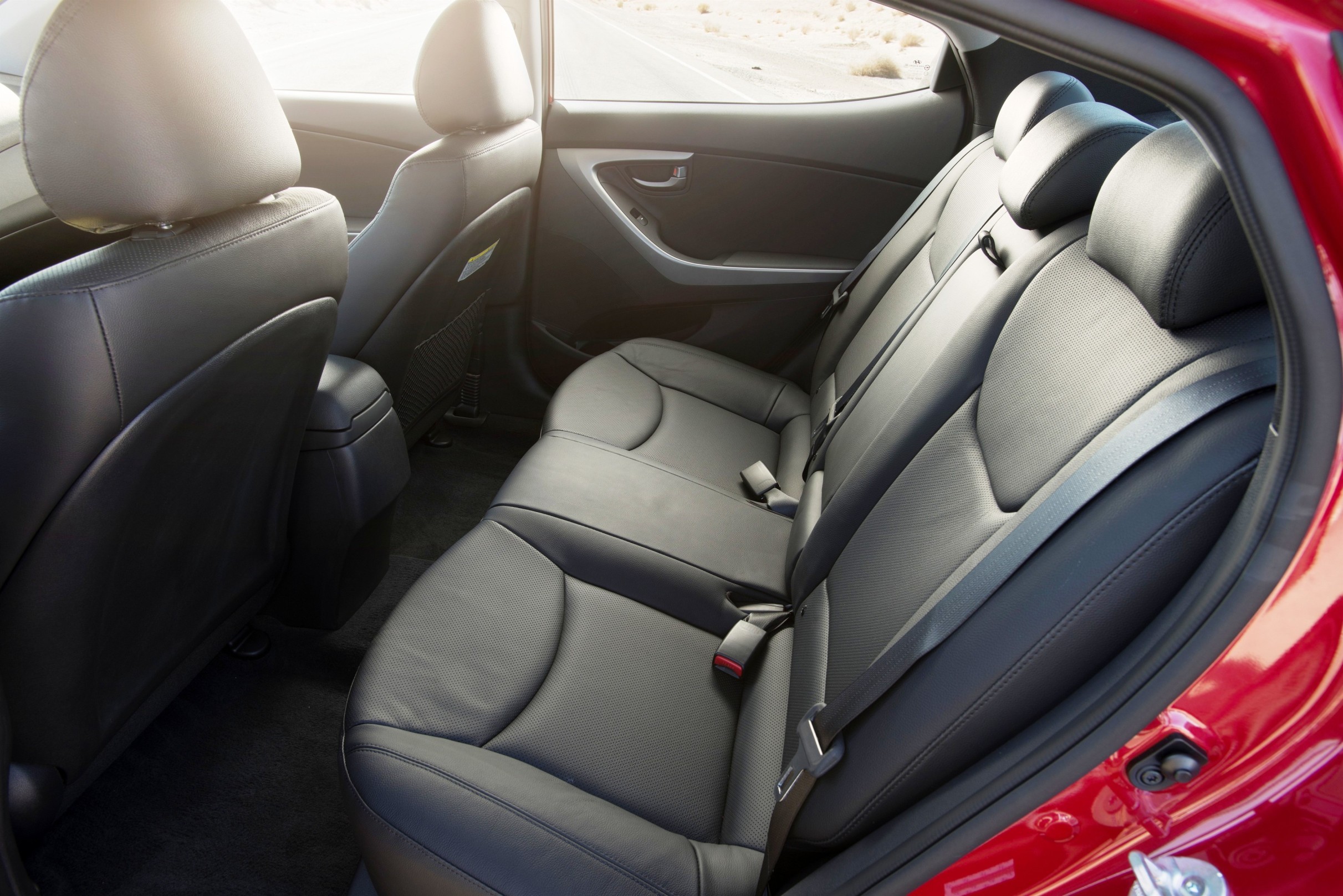

60/40 split fold-down rear seatback with adjustable head restraints

n

n

n

Rear seat folding release in trunk

n

n

n

Rear center armrest with cupholders

n

n

n

Heated rear seats

—

n

—

Power driver’s seat with lumbar support

—

n

—

SAFETY/SECURITY FEATURES

Driver and front passenger advanced airbags

n

n

n

Occupant Classification System (OCS)

n

n

n

Driver and front passenger side-impact airbags (2)

n

n

n

Front and rear passengers side air curtains (2)

n

n

n

Event data recorder

n

n

n

Adjustable front-seat shoulder belt anchors

n

n

n

Front seatbelt pretensioners

n

n

n

Lower Anchors and Upper Tether Anchors (LATCH)

n

n

n

Power window lock-out button

n

n

n

Child safety locks (rear)

n

n

n

Anti-lock Braking System (ABS) with 4-wheel disc brakes and Electronic Brake-force Distribution (EBD)

n

n

n

Vehicle Stability Management (VSM), Electronic Stability Control System (ESC) with Traction Control System (TCS)

n

n

n

Brake Assist

n

n

n

Hill Start Assist Control (HAC)

n

n

n

Tire Pressure Monitoring System (TPMS)

n

n

n

Driver’s blind spot mirror

n

n

n

Energy-absorbing steering column

n

n

n

Front and rear crumple zones

n

n

n

5-MPH bumpers

n

n

n

Front and Rear Door Bodyside reinforcements

n

n

n

Shift interlock system

n

n

n

Anti-theft system integrated with remote keyless entry and panic

n

n

n

Emergency Trunk Release

n

n

n

Front crash box and straightened side members

n

n

n

Smart pedal

n

n

n

Rear door dual beams

n

n

n

INSTRUMENTATION

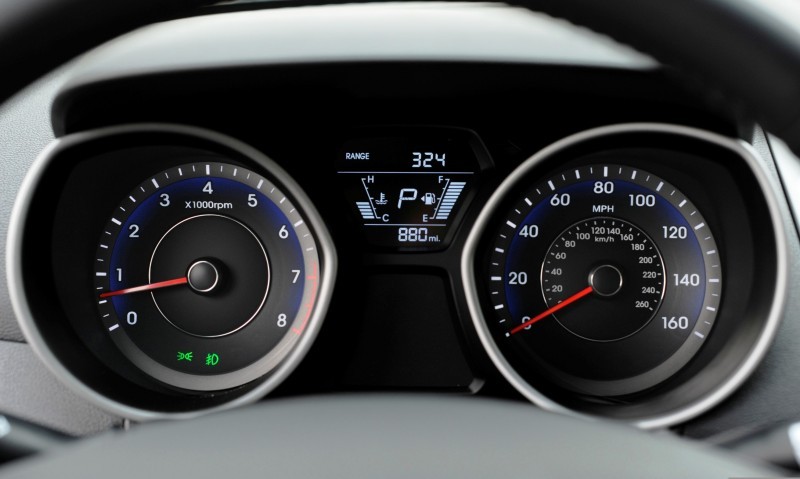

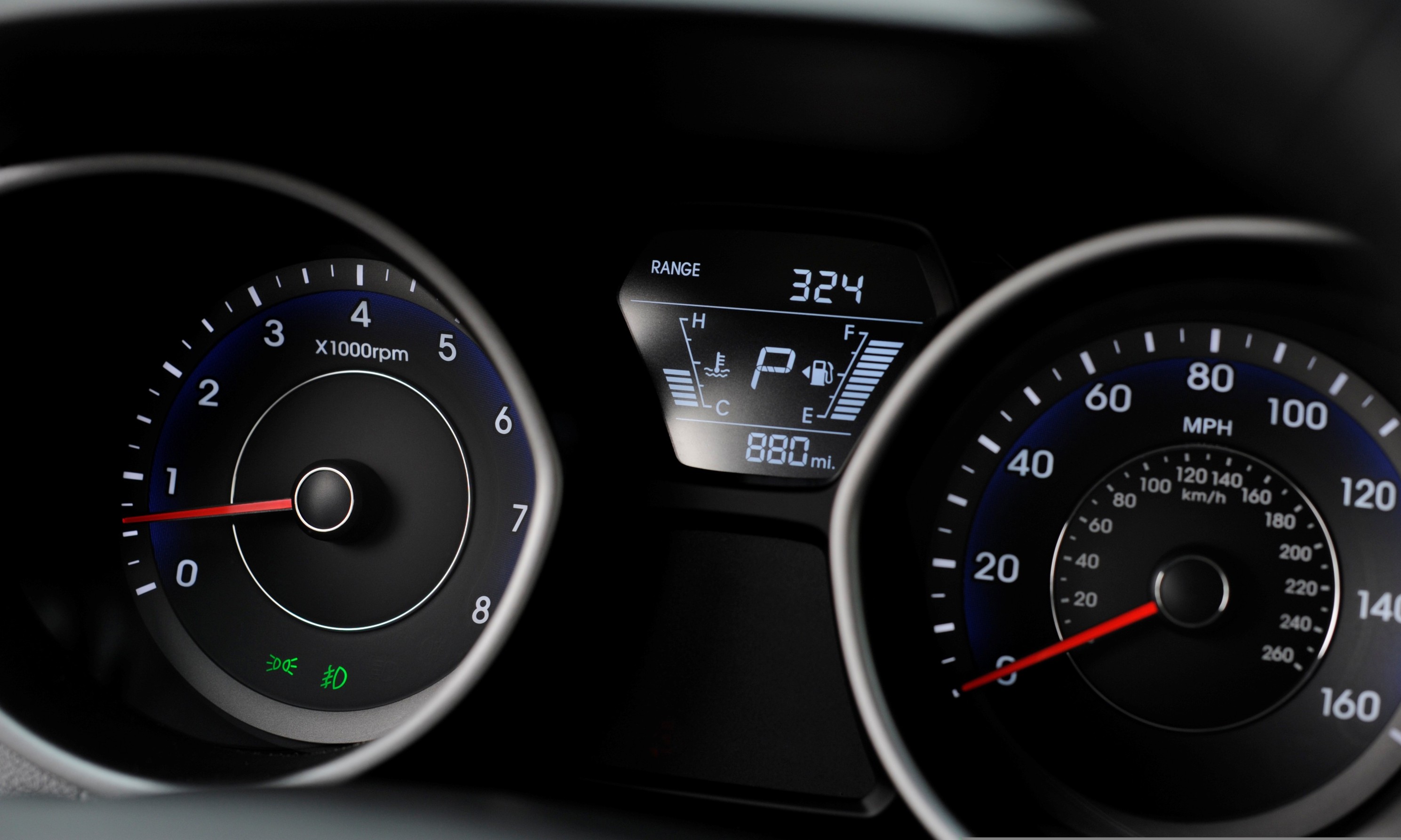

Meters/gauges: Speedometer, tachometer, fuel level, digital odometer, trip odometer, digital clock and external temperature

n

n

n

Indicators: Digital PRND (A/T only), turn signal/hazard and high beam

n

n

n

Indicator: Upshift indicator (M/T only)

n

—

n

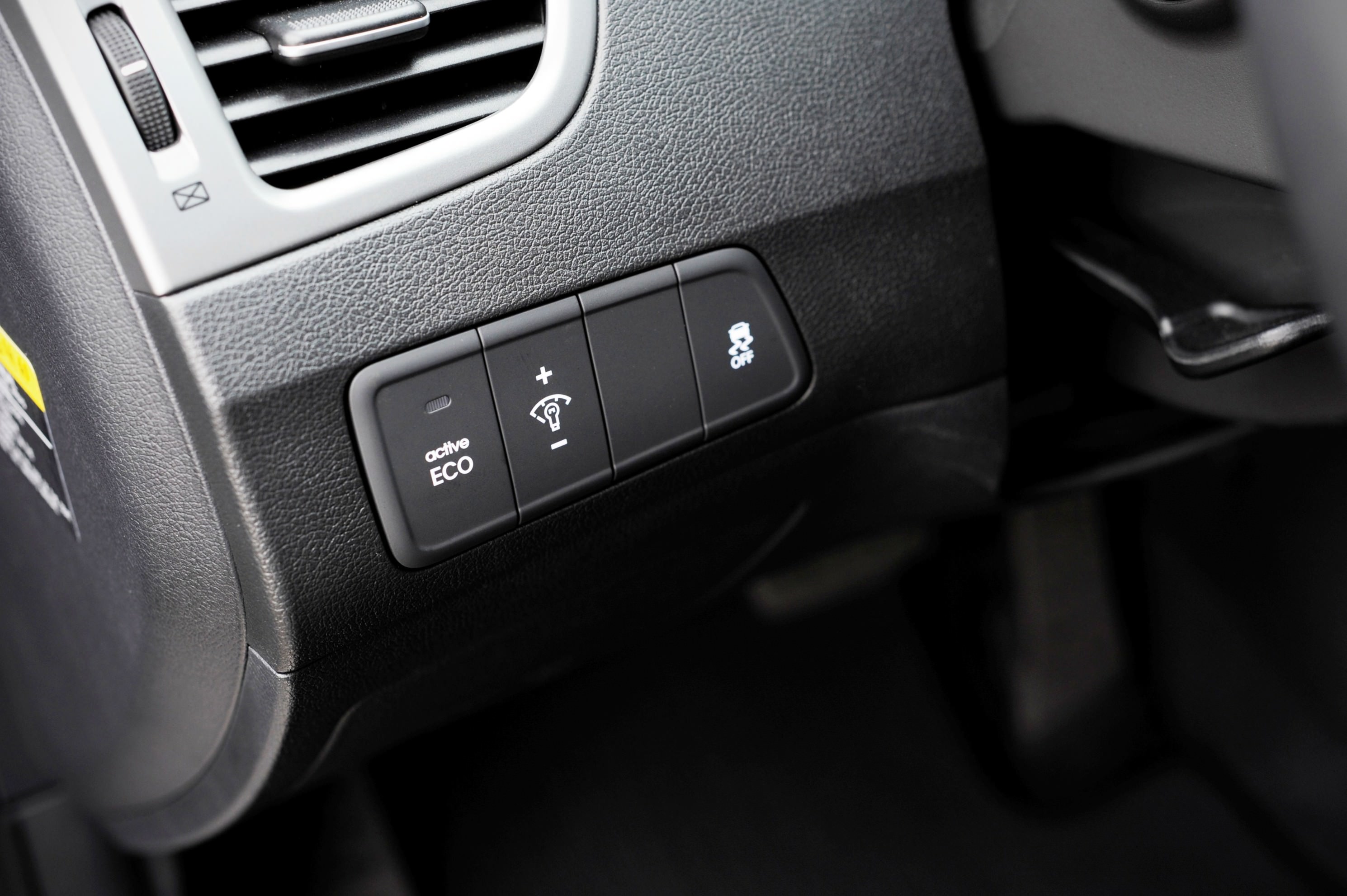

Indicator: Active Eco (A/T only)

o

n

o

Indicator: Cruise control

n

n

n

Indicator: Front foglight

o

n

n

Warning lights: Oil pressure, battery charge, door ajar, airbag, seatbelt, low fuel, trunk lid open, brake, check engine, ABS, TPMS, ESC and water temperature

n

n

n

Warning chimes: key-in-ignition with door ajar and seatbelt

n

n

n

Adjustable illumination level

n

n

n

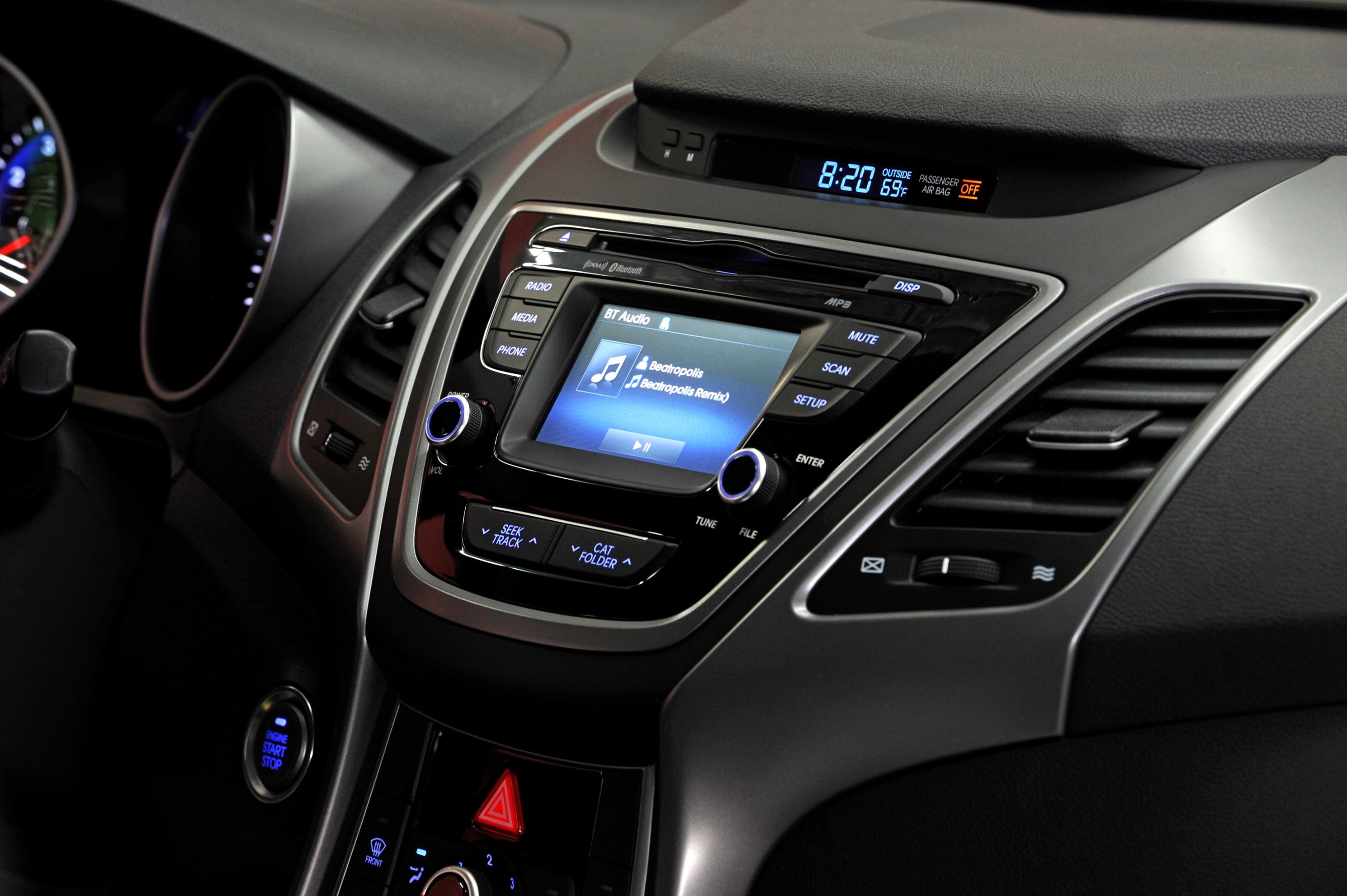

AUDIO SYSTEM

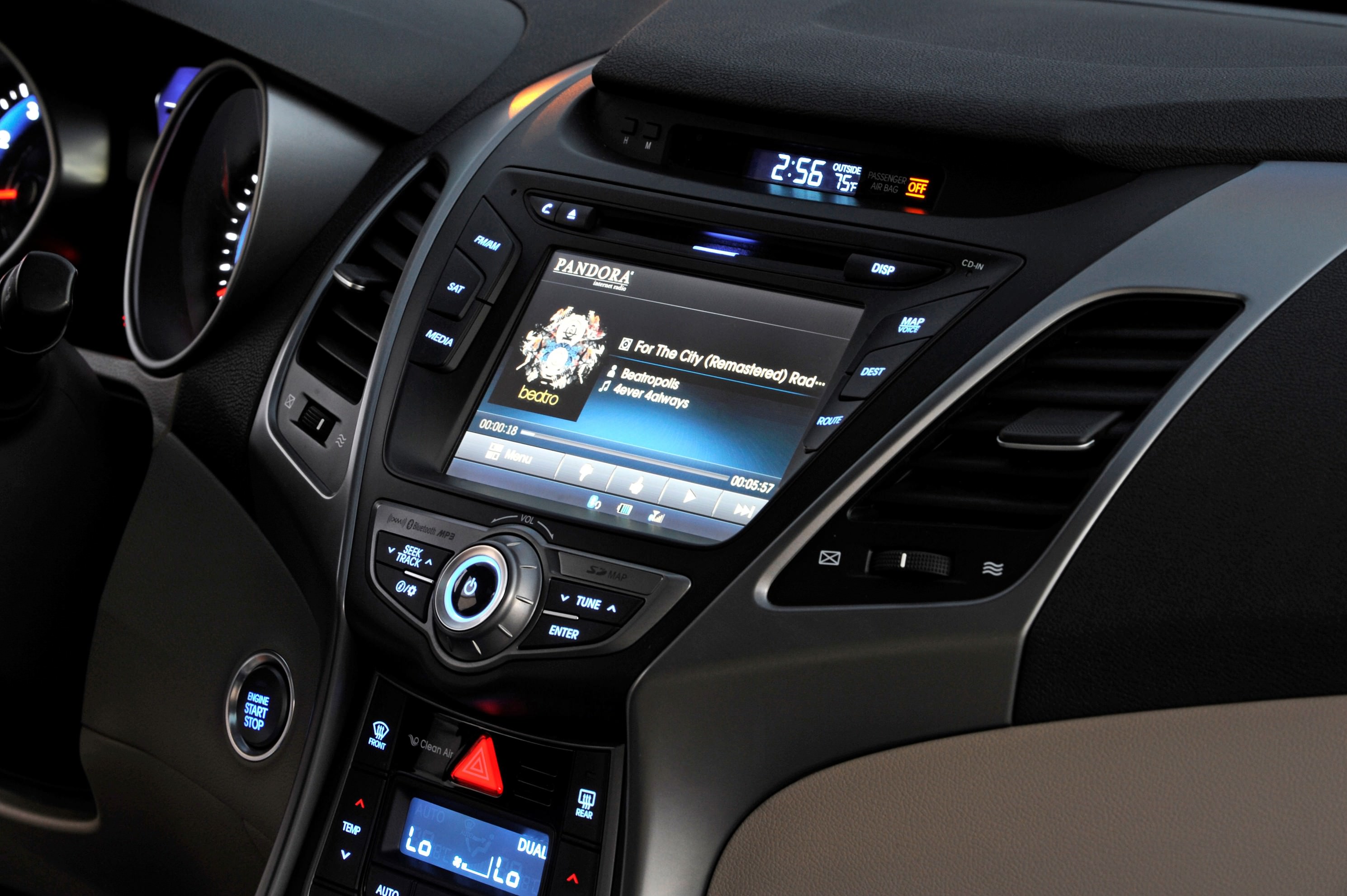

Gen 3.0A AM/FM/SiriusXM® Satellite Radio/CD/MP3 audio system with six speakers (two front-door-mounted speakers, two tweeters and two rear speakers)

n

—

—

Gen 3.0B AM/FM/SiriusXM® Satellite Radio/CD/MP3 audio system with six speakers (two front-door-mounted speakers, two tweeters and two rear speakers) and 4.3” touchscreen display with rearview camera

o

n

n

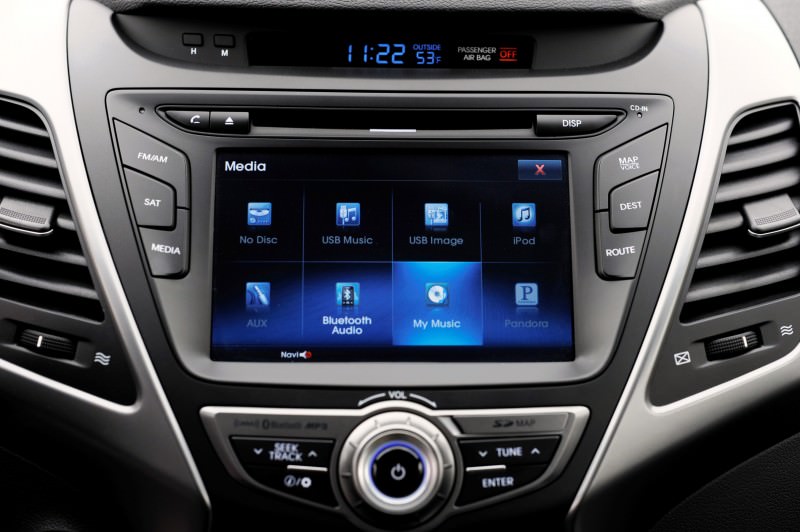

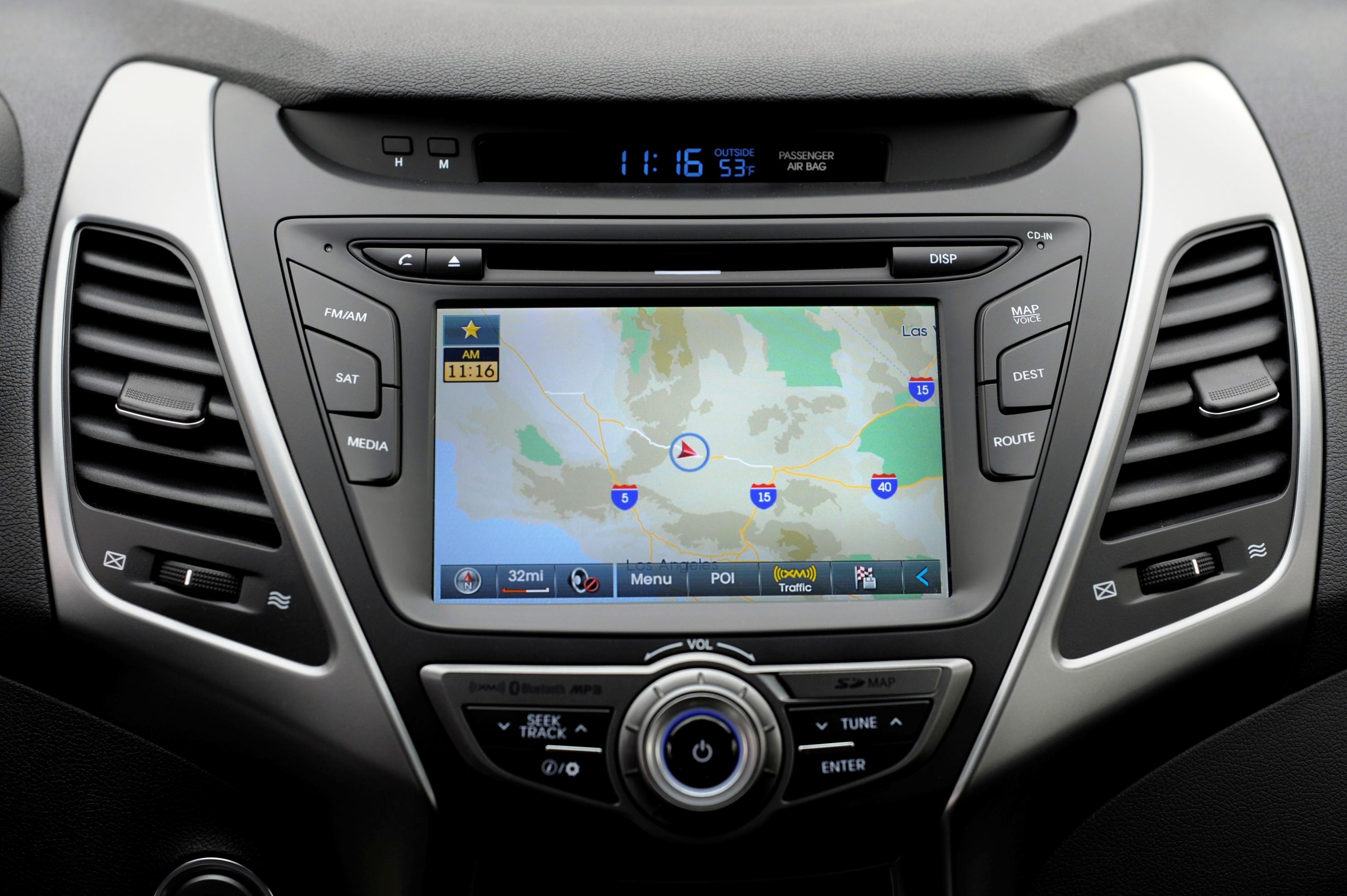

Gen 3.0 7” navigation system with high resolution touchscreen, rearview camera, AM/FM/SirusXM® Satellite Radio/CD/MP3 Audio System, 360W premium audio with external amp, including Pandora internet radio (iOS only), SirusXM Data Services: XM NavTraffic®, XM NavWeather™ and XM Sports and Stocks

—

o

o

Bluetooth® hands-free phone system with voice recognition

o

n

n

Aux input jack and iPod®/USB port

n

n

n

Speed-sensitive automatic volume control

n

n

n

In-glass AM/FM antenna

n

n

n

Roof-mounted SiriusXM® antenna, bodycolor

n

n

n

Blue backlighting illumination

n

n

n

OPTIONAL FEATURES

SE Popular Equipment Package requires SE A/T and includes 16-in. alloy wheels with P205/55/R16 tires, front fog lights, Audio 3.0B w/ 4.3” touchscreen display and rearview camera, automatic headlamp control, steering wheel audio controls, Bluetooth® hands-free phone system with voice recognition, cloth insert door trim, sliding center armrest, sunvisor extensions, illuminated vanity mirrors with driver extension, illuminated ignition and one touch up driver’s window

o

—

—

Style Package requires SE Popular Equipment Package and includes power tilt and slide sunroof, leather wrapped steering wheel and shift knob, projector headlights w/ LED accents, chrome beltline molding, aluminum entrance sills (front doors) and black cloth interior

o

—

—

Ultimate Package requires Limited Equipment and includes navigation system 3.0 w/ 7-in. screen, including Pandora internet radio (iOS only), power tilt-and-slide sunroof, 360-Watt premium audio w/ digital external amp, dual automatic temperature control, proximity key entry with electronic push button start w/ immobilizer

—

o

—

Tech Package requires Sport A/T Equipment and includes navigation system 3.0 with 7-in. screen, including Pandora internet radio (iOS only), 360-Watt premium audio with digital external amp, Hyundai Blue Link® Telematics System (GEN 1) and Blue Link Connected Care

—

—

o
